EM-DUO 120/15

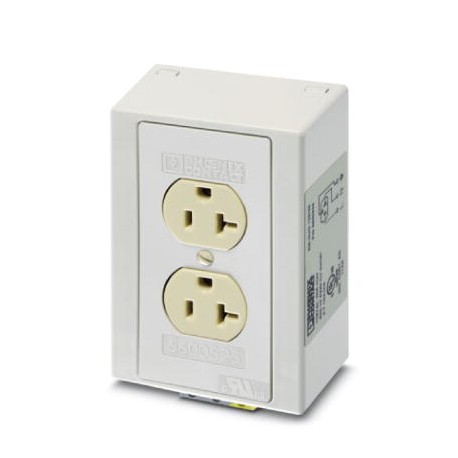

EM-DUO 120/15 5600461 PHOENIX CONTACT Socket
$48.30USD
250 in stock
Key Specifications
GTIN:4017918929930
Orderkey:5600461
Catalog page:Page 541 (C-5-2015)
Packing unit:1 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918929930 |
| Orderkey | 5600461 |
| Catalog page | Page 541 (C-5-2015) |
| Packing unit | 1 pc |
| Country of origin | US (United States) |
| (Connection data) | CSA 22.2 |
| Custom tariff number | 85366990 |
| (Ambient conditions) | CSA 22.2 |
| Screw thread (General) | M3 |
| Color (Ambient conditions) | ivory |
| Stripping length (General) | 8 mm |
| Connection method (General) | Screw connection |
| Depth (Key Commercial Data) | 49 mm |
| Width (Key Commercial Data) | 82 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Height (Key Commercial Data) | 135 mm |
| Weight per Piece (excluding packing) | 203.400 g |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Nominal current IN (Ambient conditions) | 15 A |
| Nominal voltage UN (Ambient conditions) | 125 V AC |
| Standards/regulations (Connection data) | UL 508 |
| Insulating material (Ambient conditions) | Polycarbonate & ABS blend |
| Conductor cross section AWG max. (General) | 10 |
| Standards/regulations (Ambient conditions) | UL 508 |
| Ambient temperature (operation) (Dimensions) | -35 °C ... 60 °C |
| Conductor cross section solid max. (General) | 6 mm² |
| Conductor cross section flexible max. (General) | 4 mm² |
| For country-specific use in (Ambient conditions) | USA |
Product Description
Rail-mounted dual socket with two 120 V AC/15 A female connectors, for mounting on a 35 mm rail according to EN 60715. For added safety, the ground plug is located at the top, preventing short circuit
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
