EM-CPS-TB3/63A

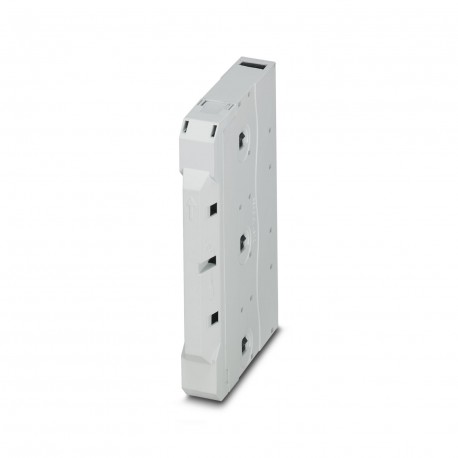

EM-CPS-TB3/63A 1002633 PHOENIX CONTACT Connection module
$0.00USD
4544 in stock
Key Specifications
:600 V AC (UL)
SCCR:6 kA
Depth:115 mm
Width:22.5 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 600 V AC (UL) | |
| SCCR | 6 kA |
| Depth | 115 mm |
| Width | 22.5 mm |
| Height | 160 mm |
| Product type | Assembly adapter |
| Rated current | 63 A (IEC) |
| Rated voltage | 690 V AC (IEC) |
| Product family | CrossPowerSystem |
| Article revision | 00 |
| Rated surge voltage | 6 kV |
| Degree of protection | IP20 |
| Max. allowable voltage | 1000 V AC/DC |
| Rated insulation voltage | 1000 V |
| Conductor cross section AWG | 14 ... 6 |
| Rated peak withstand current | 10 kA |
| Conductor cross section rigid | 1.5 mm² ... 16 mm² |
| Max. current carrying capacity | 80 A (IEC) |
Product Description
Connection module with integrated spring terminals for cables from 1.5 to 16 mm², 3 poles, maximum 63 A
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
