ELP-75-5

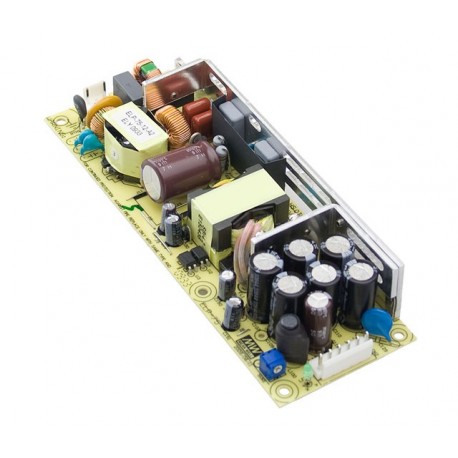

ELP-75-5 MEANWELL AC-DC Single output Open frame power supply, Output 5VDC / 15A
$26.83USD
413 in stock
Key Specifications
Name:ELP-75-5
Format:Open Format
Series:ELP-75
Approvals:CE, UL
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | ELP-75-5 |
| Format | Open Format |
| Series | ELP-75 |
| Approvals | CE, UL |
| Power (W) | 75,00 |
| Width (mm) | 60.00 |
| Height (mm) | 27.00 |
| AC input Max | 264,00 |
| AC input Min | 90,00 |
| Applications | Industrial, Telecommunications |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Isolation (V) | 3.000,00 |
| Output voltage | 5,00 |
| Peak Power (W) | Seventy five |
| Input connector | Plug-in |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | 175.00 |
| Long Description | Power supply in an open format(Open-Frame)with PFC function.Range of universal Input90-264Vac47-63Hz.Output voltage5vdc.Adjustable by potentiometer (4,7-5,5 Vdc).Output intensity15A. Range of output current 0-15A according to demand load.Power:75W.Efficiency typical:82%.Factor corrector of a power >0.95 at 230vac at full load.Operating temperature range from-30up+70ºC.Dimensions (Length x Width x Height) [mm]:175 x 60 x 27.3 years of warranty.Manufacturer: MEAN WELL.Series ELP-75 are switching power supplies format semi-open type, with a correction factor of power, active and high efficiency.Have a low profile of only 27mm in height and their technology ZVS (zero voltage switching, switching with a voltage zero) allows to reduce the generation of heat with greater efficiency. |
| Output connector | Plug-in |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 3,00 |
| Country of Origin | China |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Power supply in an open format(Open-Frame)with PFC function.
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
