ELG-240-36DA-3Y

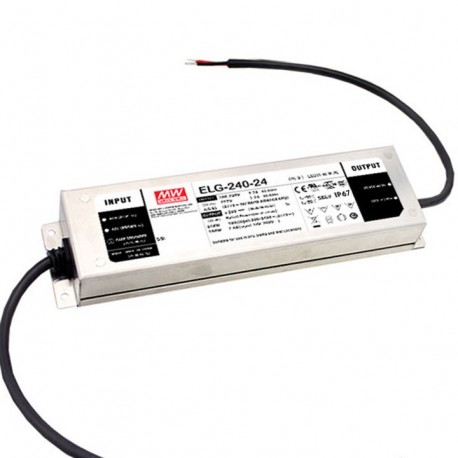

ELG-240-36DA-3Y MEANWELL AC-DC Single output LED Driver (CV+CC) with PFC, 3 wire input, Output 36VDC / 6.66A..
$0.00USD
3690 in stock
Key Specifications
Name:ELG-240-36DA-3Y
State:Recommended Model
Stock:Yes
Format:Box
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | ELG-240-36DA-3Y |
| State | Recommended Model |
| Stock | Yes |
| Format | Box |
| Series | ELG-240-V-DA |
| Dimming | DALI |
| Approvals | CCC, CE, EAC, ENEC, KCC, MM, RCM, UL |
| Power (W) | 239,70 |
| Subformato | IP67 |
| Width (mm) | 71.00 |
| Height (mm) | 37.50 |
| AC input Max | 305,00 |
| AC input Min | 100,00 |
| Applications | Lighting |
| Manufacturer | MEAN WELL |
| Product type | LED Driver |
| Isolation (V) | 3.750,00 |
| Peak Power (W) | 239.7 |
| Input connector | Cable |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | 244.00 |
| Long Description | LED driver dimmable.Specially designed for powering LEDs directly in a steady stream.Format in metal box sealedIP67.Input range100-305Vca47-63Hz.Output in constant current6,66 A.Range of output voltage with current mode constant18 to 36Vccaccording to demand load.Power:239,7 W.Efficiency typical:92%.Regulation DALI0% to 100% of the output intensity. Certificate to DALI.Input class I with grounding. Input with 3 wires for ground.Factor corrector, power>0.95to 230vac at full load.Consumption without load <0.5 W.Operating temperature range of caseTcfrom-40ºCup+90ºC.Dimensions (Length x Width x Height):244 x 71 x 37.5 mm5 years of warranty.Manufacturer: MEAN WELL.This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.This source works on a constant current when we connect the LEDs directly to have a voltage within the range of output voltage mode constant current and a working current equal to the output current.The series ELG are LED drivers, class I grounded. This version 3 has a ground wire on the input (3 wire). You can order versions in that it uses the chassis of the source as a connection to the earth, removing from the end of the model -3Y. For example ELG-240-36DA.You can also work in voltage mode constant giving a fixed voltage of 36V if the load is powered at constant voltage and does not overcome the maximum output power.With metal housing, waterproof to IP67. The series ELG has a high efficiency designed for applications of public lighting, architectural, outdoor or any application of LED lighting need a driver of high quality. Approved HL Class I Division 2 for ex-zones in the US.Compatible with any system DALI. |
| Output connector | Cable |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 5,00 |
| Country of Origin | China |
| Output current mA | 6000, 7000 |
| Intensity of Minimum Output (mA) | 6.660,00 |
| Intensity of Output Maximum (mA) | 6.660,00 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
LED driver dimmable.
