ELG-150-C1400A

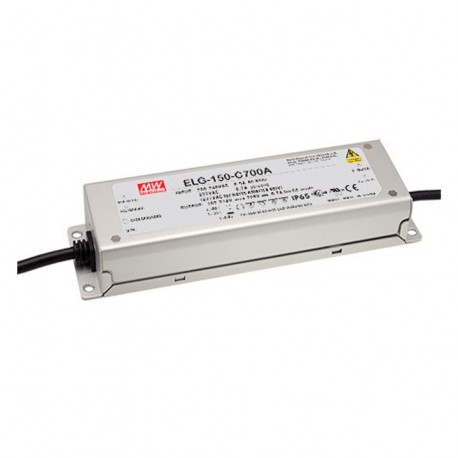

ELG-150-C1400A MEANWELL AC-DC Single output LED driver Constant current (CC) with built-in PFC, Output 107VD..
$0.00USD
3417 in stock
Key Specifications
Name:ELG-150-C1400A
State:Do not Use for New Designs
Format:Box
Series:ELG-150-C-
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | ELG-150-C1400A |
| State | Do not Use for New Designs |
| Format | Box |
| Series | ELG-150-C- |
| Approvals | CCC, CE, EAC, ENEC, KCC, MM, RCM, UL |
| Power (W) | 149,80 |
| Subformato | IP65 |
| Width (mm) | 63.00 |
| Height (mm) | 35.50 |
| AC input Max | 305,00 |
| AC input Min | 100,00 |
| Applications | Lighting |
| Manufacturer | MEAN WELL |
| Product type | LED Driver |
| Isolation (V) | 3.750,00 |
| Peak Power (W) | 149.8 |
| Input connector | Cable |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | 219.00 |
| Long Description | LED driver.Specially designed for powering LEDs directly in a steady stream.Format in metal boxIP65.Input range100-305Vca47-63Hz.Output in constant current1400mA.Adjustable by external potentiometer (700-1400mA).Range of output voltage with current mode constant54 to 107Vccaccording to demand load.Power:149,8 W.Efficiency typical:91%.Potentiometer:This model incorporates 1 external potentiometer that allows us to regulate the maximum output current.Input class I with grounding.Factor corrector, power>0.95to 230vac at full load.Consumption without load <0.5 W.Operating temperature range of caseTcfrom-40ºCup+90ºC.Dimensions (Length x Width x Height):219 x 63 x 35.5 mm5 years of warranty.Manufacturer: MEAN WELL.This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.This source works on a constant current when we connect the LEDs directly to have a voltage within the range of output voltage mode constant current and a working current equal to the output current. The output current can be adjusted byexternal potentiometerlocated in the housing of the source.The series ELG are LED drivers, class I grounded. The own metal box serves to connect the ground of security. You can ask for a version with ground cable from the input (3 wires) by adding-3Y at the end of the model. For example ELG-150-C1400A-3Y.With metal housing IP65. The series ELG has a high efficiency designed for applications of public lighting, architectural, outdoor or any application of LED lighting need a driver of high quality. Approved HL Class I Division 2 for ex-zones in the US. |
| Output connector | Cable |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 5,00 |
| Country of Origin | China |
| Output current mA | 700, 750, 800, 850, 900, 950, 1000, 1050, 1100, 1150, 1200, 1250, 1300, 1350, 1400 |
| Intensity of Minimum Output (mA) | 700,00 |
| Intensity of Output Maximum (mA) | 1.400,00 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
LED driver.
