ELG-150-24

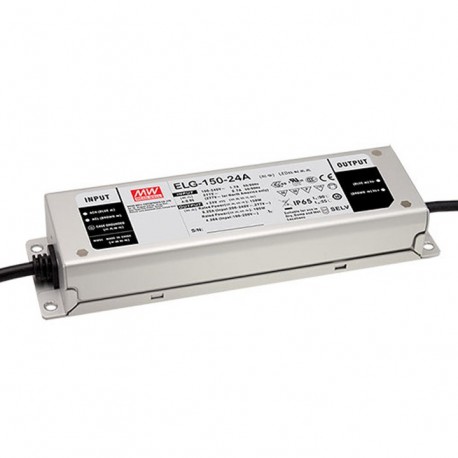

ELG-150-24 MEANWELL AC-DC Single output LED Driver mix mode (CV+CC) with PFC, Output 24VDC / 6.25A, cable ou..
$0.00USD
4321 in stock
Key Specifications
Name:ELG-150-24
State:Do not Use for New Designs
Format:Box
Series:ELG-150-V
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | ELG-150-24 |
| State | Do not Use for New Designs |
| Format | Box |
| Series | ELG-150-V |
| Approvals | BIS, CCC, CE, EAC, ENEC, KCC, MM, RCM, UL |
| Power (W) | 150,00 |
| Subformato | IP67 |
| Width (mm) | 63.00 |
| Height (mm) | 35.50 |
| AC input Max | 305,00 |
| AC input Min | 100,00 |
| Applications | Lighting |
| Manufacturer | MEAN WELL |
| Product type | LED Driver |
| Isolation (V) | 3.750,00 |
| Output voltage | 24,00 |
| Peak Power (W) | One hundred fifty |
| Input connector | Cable |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | 219.00 |
| Long Description | LED driver.Specially designed to feed LED strips.Format in metal box sealedIP67.Input range100-305Vca47-63Hz.Output voltage24vdc.Output intensity6,2 A.Range of output current 0-6,2 To according to demand load.Power:150W.Efficiency typical:89%.Input class I with grounding.Factor corrector, power>0.95to 230vac at full load.Consumption without load <0.5 W.Operating temperature range of caseTcfrom-40ºCup+90ºC.Dimensions (Length x Width x Height):219 x 63 x 35.5 mm5 years of warranty.Manufacturer: MEAN WELL.This source is designed to work directly with LED strips or LED bulbs, which are fed at constant voltage. Working mode constant voltage giving a fixed voltage of 24V if the load is powered at constant voltage and does not overcome the maximum output power.The series ELG are Led drivers, class I grounded. The own metal box serves to connect the ground of security. You can ask for a version with ground cable from the input (3 wires) by adding-3Y at the end of the model. For example ELG-150-24-3Y.This source can operate in either constant current when we connect the LEDs directly to have a voltage within the range of output voltage mode constant current and a working current equal to the output current.With metal housing, waterproof to IP67. The series ELG has a high efficiency designed for applications of public lighting, architectural, outdoor or any application of LED lighting need a driver of high quality. Approved HL Class I Division 2 for ex-zones in the US. |
| Output connector | Cable |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 5,00 |
| Country of Origin | China |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
LED driver.
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
