EKS20104

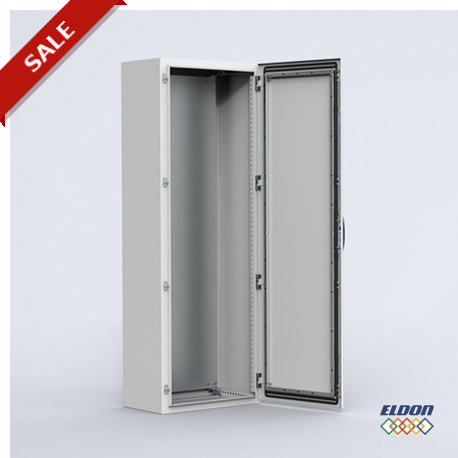

EKS20104 ELDON Floor standing, 2000x1000x400
$0.00USD
4221 in stock
Key Specifications
Note:With mounting plate
Body::One piece enclosure body plus welded rear panel. Integrated depth profiles with hole pattern allowing mounting plate adjustment in depth.
Depth:400 mm
Door::Surface mounted with 4 hinges allowing left or right hand opening. Including door frame with 25 mm hole pattern and earthing studs.
Supplier Information
ELDON
Products: 4827
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Note | With mounting plate |
| Body: | One piece enclosure body plus welded rear panel. Integrated depth profiles with hole pattern allowing mounting plate adjustment in depth. |
| Depth | 400 mm |
| Door: | Surface mounted with 4 hinges allowing left or right hand opening. Including door frame with 25 mm hole pattern and earthing studs. |
| Lock: | Espagnolette 4-point locking system. Does not interfere with the enclosure inner space. Standard double-bit lock with 3 mm insert. Can be exchanged for standard inserts or Euro-cylinder and swing handle. |
| Width | 1000 mm |
| Height | 2000 mm |
| Weight | 135,0 Kg |
| Finish: | RAL 7035 structured powder coating. |
| Delivery: | One piece body with fitted door, bottom plates and mounting plate, including door earthing studs. The enclosure is delivered on a pallet identical to the enclosure width. Mounting plate is supplied on the outside of the enclosure packaging. All the packing material is recyclable. |
| Earthing: | Can be accomplished by using ECF (Earthing connections for frame). |
| Material: | Body and welded rear panel: 1.5 mm mild steel. Door: 2 mm mild steel. Mounting plate: 3 mm galvanized steel. Bottom plates: 1 mm galvanized steel. |
| Protection: | Complies with IP 66 TYPE 4, 12, 13 IK 10. |
| Bottom plates: | Consists of two pieces or three (D>300) pieces. |
| Characteristics | |
| Mounting plate: | Double folded and slides into position. Adjustable in depth by steps of 25 mm. In the enclosure's delivery, mounting plate is attached on the outside of the enclosure packaging. |
| Mounting PlateWidth | 894 mm |
| Mounting PlateHeight | 1894 mm |
| Max. enclosureuseful depth | 355 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Innovative improved design, the mild steel single door floor standing enclosure offers any user maximum effectivness. With one piece body and welded rear panel ensures superior rigidity. The front hole pattern guarantees the highest flexibility while maintaining IP 66 protection degree.
