EKD16125

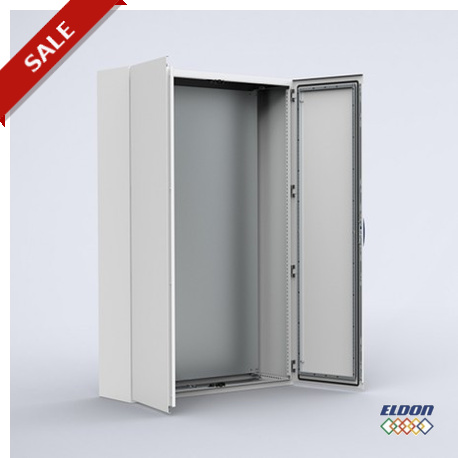

EKD16125 ELDON Floor standing, 1600x1200x500
$0.00USD
3924 in stock
Key Specifications
Note:With mounting plate
Body::One piece enclosure body plus welded rear panel. Integrated depth profiles with hole pattern allowing mounting plate adjustment in depth.
Depth:500 mm
Door::Surface mounted with 4 hinges including door frame with 25 mm hole pattern and earthing studs. Standard doors can not be reversed.
Supplier Information
ELDON
Products: 4827
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Note | With mounting plate |
| Body: | One piece enclosure body plus welded rear panel. Integrated depth profiles with hole pattern allowing mounting plate adjustment in depth. |
| Depth | 500 mm |
| Door: | Surface mounted with 4 hinges including door frame with 25 mm hole pattern and earthing studs. Standard doors can not be reversed. |
| Lock: | External espagnolette 4-point locking system. Standard fitted double-bit 3 mm insert. It can be exchanged for standard range of inserts, Euro-cylinder and swing handle. |
| Width | 1200 mm |
| Height | 1600 mm |
| Weight | 145,0 Kg |
| Finish: | RAL 7035 structured powder coating. |
| Delivery: | One piece body with fitted doors, bottom plates and mounting plate, including door earthing studs. The enclosure is delivered on a pallet identical to the enclosure width. Mounting plate is supplied on the outside of the enclosure packaging. All the packaging material is recyclable. |
| Earthing: | Can be accomplished by using ECF (Earthing connections for frame). |
| Material: | Body and welded rear panel: 1.5 mm mild steel. Door: 2 mm mild steel. Mounting plate: 3 mm galvanized steel. Bottom plates: 1 mm galvanized steel. |
| Protection: | Complies with IP 55 TYPE 12, 13 IK 10. |
| Bottom plates: | Consists of two sets of two pieces or three (D>300) pieces. |
| Characteristics | |
| Mounting plate: | Double folded and slides into position. Adjustable in depth by steps of 25 mm. Mounting plate is delivered attached on the outside of the enclosure packaging. Fitted inside for 1600 mm wide mounting plates. |
| Mounting PlateWidth | 1094 mm |
| Mounting PlateHeight | 1494 mm |
| Max. enclosureuseful depth | 455 |
| Max. enclosure useful depth (mm) | 455 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
As the double door version to EKS, the EKD offers the same improved design and strength as its smaller brother. With one piece body and welded rear panel ensures superior rigidity, and the front hole pattern guarantees the highest flexibility while maintaining IP 55 protection degree.
