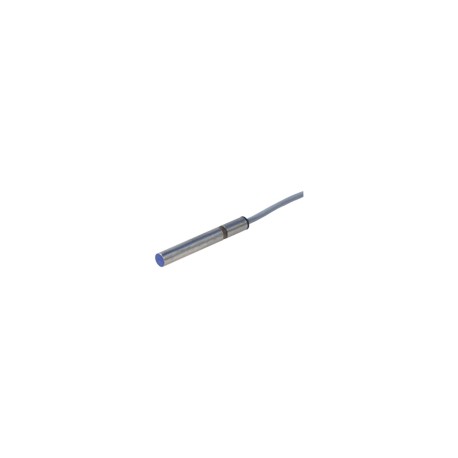

EI0601NACS

Proximity Sensors InductiveStainless Steel HousingTypes EI, Ø 6.5, M8, NAMUR• Stainless steel housing, cylindrical• Diameter: Ø 6.5, M8• Short versions• Sensing distance: 1 to 2 mm• Output: NAMUR (DIN 19234)• Protection: Reverse polarity• 2 m cableProduct DescriptionOrdering KeyEI 0601 NAC SProximityswitchinØ6.5 and M8housings.Madein accordancewithNAMUR DIN 19 234. Short version instandard stainless steel housing.Amplifierrelay SD... is available.TypeHousing diameter (mm) Rated operating dist. (mm) Output typeHousing materialType SelectionHousingRated operating distanceOrdering no. diameter(Sn) NAMURØ 6.5 mm 1 mm 1)EI 0601 NACSM81 mm 1)EI 0801 NACS1) For flush mounting in metalM82 mm 2)EI 0802 NACS2) For non-flush mounting in metalSpecificationsRated operational volt. (Ue) 8.2 VDC (UB) 7 to 9 VDC(6 to 35 VDC, all specifica-tions not observed in extended supply range)Self-inductance Max. 500 µH Self-capacitance Max. 120 nF Current consumption (Io) Activated: ≤1 mANot activated: ≥ 2.2 mAMax.: 9.35 mAProtectionReverse polarityTransient voltage≤ 1 kV/0.5 J (prepared)Ambient temperatureOperating-25° to +70°C (-13° to +158°F) Storage -30° to +80°C (-22° to +176°F)Degree of protectionIP 67(Nema 1, 3, 4, 6, 13)Housing materialBody Stainless steel (1.4301) Front Thermoplastic polyester Back Black PVCCable2 m, 2 x 0.14 mm2grey PVC, oil proofWeight (cable included)Frequency of operating cycles (f)EI 06 30 gEI 08 50 gEI 0601 2000 Hz EI 0801 2000 Hz EI 0802 1500 HzAssured operating dist. (Sa)0 ≤ Sa ≤ 0.81 x SnRepeat accuracy (R) ≤ 5%Hysteresis (H)(Differential travel)Dependent on amplifier relayEffective operating dist. (Sr)0.9 x Sn ≤ Sr ≤ 1.1 x SnUsable operating dist. (Su) 0.9 x Sr ≤ Su ≤ 1.1 x SrTightening torque EI 083.0 Nm (x)7.0 Nm (y)Refer to "Terms Used" Technical information.ApprovalsUL, CSACE-marking YesSpecifications are subject to change without notice (20.12.13) 1
