EH 70-C CS/ABS-PC BK9005

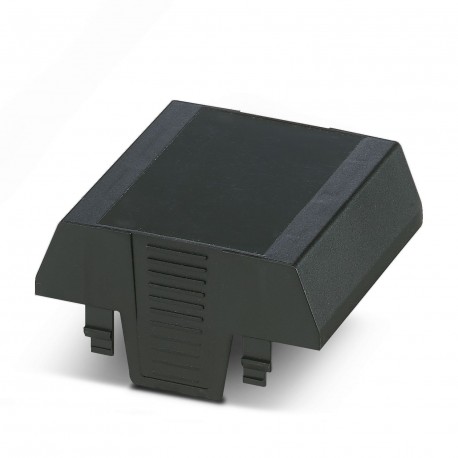

EH 70-C CS/ABS-PC BK9005 1071138 PHOENIX CONTACT DIN rail housing, Upper part, without connection opening, w..
$0.00USD
3107 in stock
Key Specifications
Type:Upper housing part, tall design, no connection opening
Depth:36.95 mm
Width:70.1 mm
Height:75 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Upper housing part, tall design, no connection opening |
| Depth | 36.95 mm |
| Width | 70.1 mm |
| Height | 75 mm |
| Housing type | DIN rail housing |
| Product type | Upper housing part |
| Assembly note | Refer to the data sheet for the range in the download area. |
| Mounting type | Snap in |
| Housing series | EH |
| Product family | EH..ABS-PC.. |
| Color (Housing) | black (RAL 9005) |
| Article revision | 00 |
| Housing material | ABS-PC |
| Type of PCB mount | Slot |
| Dimensional drawing | |
| Max. IP code to attain | IP20 |
| Surface characteristics | untreated |
| Ventilation openings present | no |
| Ambient temperature (assembly) | -5 °C ... 80 °C |
| Ambient temperature (operation) | -40 °C ... 80 °C (depending on power dissipation) |
| Depth from base support surface | 19.95 mm |
| Relative humidity (storage/transport) | 95 % |
| Flammability rating according to UL 94 | V0 |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
Product Description
Rail box, Top of housing, tall design, no connection hole, width: 70.1 mm, height: 75 mm, depth: 36.95 mm, color: black (9005)
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
