EG 22,5-GMFP/PC GN

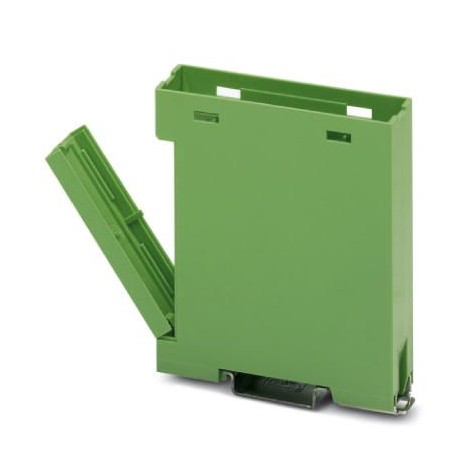

EG 22,5-GMFP/PC GN 2764807 PHOENIX CONTACT Electronic housing
$0.00USD
3666 in stock
Key Specifications
GTIN:4017918131869
Note:Made to Order (non-returnable)
Orderkey:2764807
Catalog page:Page 720 (C-1-2013)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918131869 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2764807 |
| Catalog page | Page 720 (C-1-2013) |
| Packing unit | 10 pc |
| Country of origin | PL (Poland) |
| Custom tariff number | 85389099 |
| Minimum order quantity | 10 pc |
| Depth (Ambient conditions) | 75 mm |
| Width (Ambient conditions) | 22.5 mm |
| Height (Ambient conditions) | 107.5 mm |
| Length (Ambient conditions) | 75 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Number of positions (Dimensions) | 8 |
| Color (RAL) (Key Commercial Data) | green |
| Housing type (Key Commercial Data) | Component housing |
| Weight per Piece (excluding packing) | 35.310 g |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Housing material (Key Commercial Data) | Polycarbonate |
| Ambient temperature (operation) (General) | -40 °C ... 125 °C |
| Power dissipation without gap (Dimensions) | 1.7 W |
| Power dissipation with 20 mm gap (Dimensions) | 2.7 W |
| Flammability rating according to UL 94 (Technical data) | V0 |
Product Description
Lower part of the housing, with metal foot bolt and test opening with side cover
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
