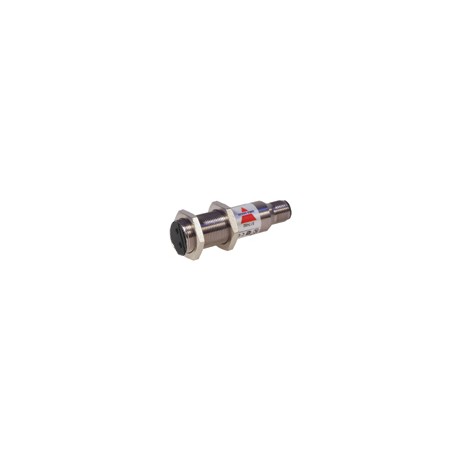

PhotoelectricsType EF 1801FiberOptic Sensor• Range: Fiber dependent, typ. 100 mm• Adjustable sensitivity• Modulated, red light• Rated operational voltage: 10 to 40 VDC• Output: DC 200 mA NPN or PNP• Make and break switching function, LED indication• Heavy duty M18 metal housing, IP 67• Cable and plug versions• For 2.2 mm fiber cable with 1 mm core• MB 18 A for DIN-rail mounting (see Accessories)Product DescriptionOrdering KeyEF 1801PPA S - 1Used in through-beam, retro- reflective or diffuse-reflective applicationsdepending upon how the additional fibers are mounted. Easily adjustable sensitivity with 270° potentio- meter. LED indication for out-put ON. Short M18 metal housing for heavy duty appli- cations. The fiber allows posi- tioning and mounting in tight spaces with the photoelectric sensor itself mounted in a more convenient location.TypeHousing diameterRange Output type Housing material Connection typeType SelectionHousingRatedOrdering no.Ordering no.Ordering no. Ordering no. diameter operating NPN/cable NPN/plug PNP/cable PNP/plugdist. (Sn) Make & break swit.Make & break swit.Make & break swit.Make & break swit.M18 Fiber depend.EF 1801 NPAS EF 1801 NPAS-1EF 1801 PPAS EF 1801 PPAS-1SpecificationsRated operating dist. (Sn)Fiber dependent Temperature drift0.4%/K Hysteresis (H)(Differential travel)3 to 20%Rated operational volt. (UB)10 to 40 VDC (ripple included)Ripple (Urpp) ≤10%Output currentContinuous (Ie) ≤ 200 mA Short-time (I) 200 mA,max. load capacity 100 nFNo load supply current(IO) ≤ 20 mA, Min. loadcurrent (Im)0.5 mA OFF-state current (Ir)≤ 100 µA Voltage drop (Ud)≤ 2.5 VProtectionReverse polarity,short circuit, transientsTransient voltageMax. 1 kV/0.5 JSensitivityAdjustable, 270° turn potentiometer,Light source660 nmLight type Red,modulated, synchronizedOperating frequency (f) 120 Hz, light/dark ratio 1:2Response timeOFF-ON (tON)≤ 3.2 msON-OFF (tOFF) ≤ 5 msPower ON delay (tV)Typ. 100 msIndicationOutput ON LED, yellowEnvironmentOvervoltage categoryIII (IEC 60664/664A60947-1) Pollution degree3 (IEC 60664/664A 60947-1) Degree of protectionIP 67 (IEC 60529 60947-1)TemperatureOperating -20° to +60°C (-4° to 140°F) Storage-30° to + 70°C (-22° to 158°F)Vibration 10 to 150 Hz, 0.5 mm/7.5 g(IEC 60068-2-6)Shock2 x 1 m & 100 x 0.5 m(IEC 60068-2-32)Dielectric voltage 500 VAC (rms)Housing materialBodyNickel-plated brass FrontTPE/POM, black Cable endPolyester, black Nuts Nickel-plated brassSpecifications are subject to change without notice (06.03.2006)1
