EEM-MA771-EIP

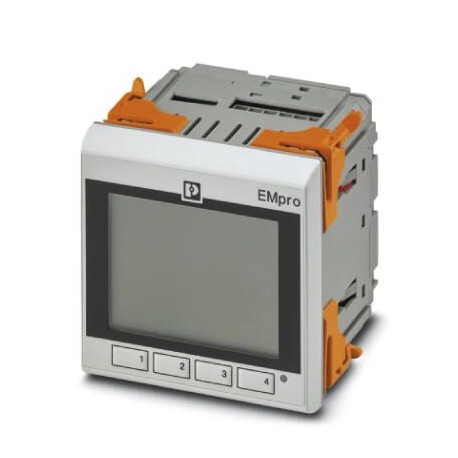

EEM-MA771-EIP 2908302 PHOENIX CONTACT Multifunctional energy measuring device with direct Rogowski connectio..
$0.00USD
3080 in stock
Key Specifications
GTIN:4055626369051
Orderkey:2908302
Catalog page:Page 202 (C-5-2019)
Packing unit:1 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626369051 |
| Orderkey | 2908302 |
| Catalog page | Page 202 (C-5-2019) |
| Packing unit | 1 pc |
| (Dimensions) | IP20 (Housing) |
| (Output data) | 150 V DC ... 250 V DC ( 20 %) |
| Torque (General) | 0.5 Nm ... 0.6 Nm |
| Country of origin | DE (Germany) |
| ETIM 4.0 (eCl@ss) | EC002301 |
| ETIM 5.0 (eCl@ss) | EC002301 |
| ETIM 6.0 (eCl@ss) | EC002301 |
| ETIM 7.0 (eCl@ss) | EC002301 |
| Color (Output data) | gray |
| Number (Input data) | 1 |
| Custom tariff number | 90303100 |
| (Ambient conditions) | 1 % |
| Conformance (UL data) | CE-compliant |
| Display (Output data) | LCD display, two-color backlit |
| Screw thread (General) | M3 |
| Mains type (Output data) | 3-phase (3 or 4-wire), 2-phase (2-wire), and single-phase (1-wire) |
| Torque (Connection data) | 0.5 Nm ... 0.6 Nm |
| Conformance (Output data) | CE-compliant |
| Connection name (General) | Current / voltage / supply |
| Stripping length (General) | 8 mm |
| Test voltage (Output data) | 4 kV AC (50 Hz, 1 min.) |
| Connection method (General) | Screw connection |
| Depth (Key Commercial Data) | 75 mm |
| Number (Ambient conditions) | 1 |
| Width (Key Commercial Data) | 96 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Height (Key Commercial Data) | 96 mm |
| Product family (Output data) | EMpro |
| eCl@ss 5.0 (Classifications) | 27200301 |
| eCl@ss 5.1 (Classifications) | 27200301 |
| eCl@ss 6.0 (Classifications) | 27142300 |
| eCl@ss 7.0 (Classifications) | 27142330 |
| eCl@ss 8.0 (Classifications) | 27142330 |
| eCl@ss 9.0 (Classifications) | 27142330 |
| Maximum altitude (Dimensions) | ≤ 2000 m |
| Precision (Ambient conditions) | < 1 % |
| Screw thread (Connection data) | M3 |
| Input name (Ambient conditions) | Current measurement RC1, RC2, RC3 |
| Output description (Input data) | Digital output in accordance with IEC/EN 61131-2 (type 3) |
| Power consumption (Output data) | ≤ 4 W |
| Connection name (Connection data) | Digital I/O / communication |
| Degree of protection (Dimensions) | IP54 (Display (+ EEM-MA-IP)) |
| Current output signal (Input data) | ≤ 100 mA |
| Input current (Ambient conditions) | 4000 A |
| Operating mode (Connection data 2) | Indoor use |
| Stripping length (Connection data) | 7 mm |
| Supply voltage range (Output data) | 100 V AC ... 400 V AC ( 20 %) |
| Connection method (Connection data) | Screw connection |
| Measured value (Ambient conditions) | AC sine (50/60 Hz) |
| Weight per Piece (excluding packing) | 540.000 g |
| Conductor cross section AWG (General) | 24 ... 10 |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Conductor cross section solid (General) | 0.2 mm² ... 6 mm² |
| Input voltage range (Ambient conditions) | 35 V AC ... 690 V AC (Phase/Phase) |
| Measuring principle (Ambient conditions) | True r.m.s. value measurement |
| Current input signal (Ambient conditions) | 2 mA ... 15 mA |
| Voltage input signal (Ambient conditions) | 0 V DC ... 30 V DC |
| Conductor cross section flexible (General) | 0.2 mm² ... 4 mm² |
| Surge voltage capacity (Ambient conditions) | 760 V AC (Phase/Phase) |
| Ambient temperature (operation) (Dimensions) | -10 °C ... 55 °C |
| Acquisition of harmonics (Ambient conditions) | up to 63rd harmonic |
| Conductor cross section AWG (Connection data) | 26 ... 14 |
| Description of the input (Ambient conditions) | Digital input in accordance with IEC/EN 61131-2 (type 3) |
| Conductor cross section solid (Connection data) | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible (Connection data) | 0.14 mm² ... 1.5 mm² |
| Reactive power (IEC 62053-23) (Ambient conditions) | Class 2 |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 70 °C |
| Max. permissible relative humidity (operation) (Dimensions) | ≤ 95 % (non-condensing) |
| Response threshold from measuring range nominal value (Ambient conditions) | 5 A |
