In Stock Hot Product
EEM-MA370

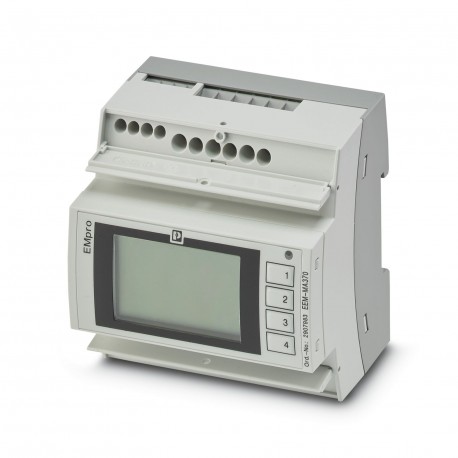

EEM-MA370 2907983 PHOENIX CONTACT Multi-functional energy measuring device with integrated Modbus/TCP interf..
$0.00USD
3673 in stock
Key Specifications
:II (600 V AC)
Color:gray (RAL 7042)
Depth:71.9 mm
Width:90 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| II (600 V AC) | |
| Color | gray (RAL 7042) |
| Depth | 71.9 mm |
| Width | 90 mm |
| Height | 90 mm |
| Number | 1 |
| Altitude | ≤ 2000 m |
| Precision | 0.2 % |
| Input name | Voltage measuring input V1, V2, V3 |
| Insulation | Reinforced insulation |
| Mains type | 3-phase (3 or 4-conductor), 2-phase (2-conductor), and single-phase (1-conductor) |
| Protection | 250 mA (fast-blow) |
| ANSI C12.20 | Class 0.5 S |
| Certificate | CE-compliant |
| Product type | Energy measuring device |
| Screw thread | M3 |
| Test voltage | 4 kV AC (50 Hz, 60 s) |
| Input current | 1 A (secondary) |
| Mounting type | DIN rail mounting |
| Identification | UL/C-UL Listed UL 61010-1 |
| Measured value | AC sine (50 Hz/60 Hz) |
| Operating mode | Indoor use |
| Product family | EMpro |
| Measuring range | 1 A ... 20000 A (primary) |
| Article revision | 09 |
| Current overload | 50 A for 1 s |
| Pollution degree | 2 |
| Stripping length | 8 mm |
| Connection method | Screw connection |
| Mounting position | Horizontal DIN rail |
| Nominal frequency | 50 Hz ... 60 Hz (AC sine) |
| Overload capacity | 6 A (Imax) |
| Power consumption | ≤ 4 W |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
| Measuring category | III (300 V AC) |
| Output description | Digital output in accordance with IEC/EN 61131-2 (type 3) |
| Protective circuit | Protection against incorrect DC connection (max. 30 V) |
| Measuring principle | True RMS value measurement (TRMS) |
| Current input signal | 2 mA ... 15 mA |
| Overvoltage category | III (300 V AC) |
| Supply voltage range | 100 V AC ... 230 V AC (±20 %) |
| Voltage input signal | 24 V DC |
| Current output signal | ≤ 100 mA |
| Standards/regulations | IEC 61010-1 |
| Voltage output signal | 24 V DC |
| Communication protocol | Modbus/TCP |
| Surge voltage capacity | 760 V AC (Phase/Phase) |
| Acquisition of harmonics | up to 63rd harmonic |
| Description of the input | Digital input in accordance with IEC/EN 61131-2 (type 3) |
| Input voltage range direct | 35 V AC ... 690 V AC (Phase/Phase) |
| Conductor cross section AWG | 24 ... 10 |
| Active energy (IEC 62053-22) | Class 0.5 S |
| Conductor cross section rigid | 0.2 mm² ... 6 mm² |
| Reactive power (IEC 62053-23) | Class 2 |
| Degree of protection (Display) | IP40 (Display) |
| Degree of protection (Housing) | IP20 (Housing) |
| Ambient temperature (operation) | -25 °C ... 70 °C |
| Conductor cross section flexible | 0.2 mm² ... 4 mm² |
| Ambient temperature (storage/transport) | -30 °C ... 80 °C |
| Input voltage range via external transformers | 60 V AC ... 2000000 V AC (primary) |
| Max. permissible relative humidity (operation) | ≤ 95 % (non-condensing) |
| Maximum power dissipation for nominal condition | 10 VA |
| Response threshold from measuring range nominal value | 10 mA (1 A) |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
