EE-SX954-R 1M

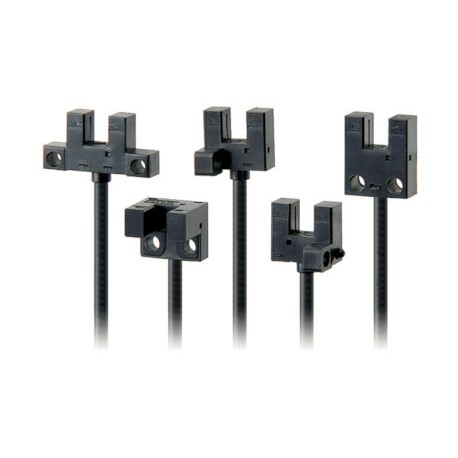

EE-SX954-R 1M EESX2213B 378493 OMRON Horseshoe 6.5mm IR NPN With Light/In Darkness Robotic Cable
$32.96USD
337 in stock
Key Specifications
:
NPN:EE-SX950-W 1M
PNP:EE-SX950P-W 1M
Item:
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| NPN | EE-SX950-W 1M |
| PNP | EE-SX950P-W 1M |
| Item | |
| Lens | Polycarbonate |
| F-shaped | EE-SX952-W 1M |
| L-shaped | EE-SX951-W 1M |
| Material | Case |
| R-shaped | EE-SX953-W 1M |
| U-shaped | EE-SX954-W 1M |
| Slot depth | 6.5 mm |
| Sensor type | Sensing distance |
| Response frequency | 1 kHz min. (3 kHz average) |
| Ambient temperature | Operating: −25 to +55°C, Storage: −30 to +80°C (with no icing or condensation) |
| Protective circuits | Load short-circuit protection |
| Degree of protection | IEC60529 IP50 |
| Power supply voltage | 5 to 24 VDC ±10%, ripple (p-p): 10% max. |
| Through-beam with slot | 5 mm(slot width)(Infrared light) |
| Standard sensing object | Opaque: 1.8 × 0.8 mm min. |
| Light source (wave length) | Infrared LED (940 nm) |
| Sensing distance (slot width) | 5 mm |
Product Description
Photo micro sensor, slot type, NPN, 1 m robotic cable
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
The small sized photo microsensors are ideally suited for the detection of machine parts where space is crucial.
