EDU PLC CB 01

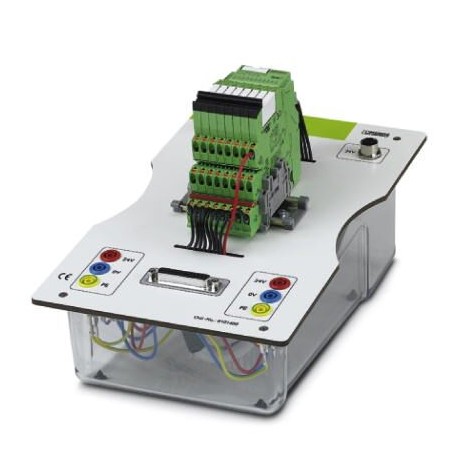

EDU PLC CB 01 8101466 PHOENIX CONTACT The PLC logic trainer is an Eduline training board for the preparation..
$0.00USD
4806 in stock
Key Specifications
GTIN:4046356915571
Orderkey:8101466
Packing unit:1
ETIM 4.0 (eCl@ss):EC002584
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356915571 |
| Orderkey | 8101466 |
| Packing unit | 1 |
| ETIM 4.0 (eCl@ss) | EC002584 |
| ETIM 5.0 (eCl@ss) | EC001417 |
| ETIM 6.0 (eCl@ss) | EC001417 |
| ETIM 7.0 (eCl@ss) | EC001417 |
| UNSPSC 13.2 (ETIM) | 39122329 |
| UNSPSC 18.0 (ETIM) | 39122329 |
| UNSPSC 19.0 (ETIM) | 39122329 |
| UNSPSC 20.0 (ETIM) | 39122329 |
| UNSPSC 21.0 (ETIM) | 39122329 |
| Custom tariff number | 85371098 |
| Engineering tool (Note) | LOGIC+ |
| Weight (Control system) | 3.30 kg |
| Number (Mechanical design) | 1 |
| (IEC 61131 runtime system) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| eCl@ss 5.1 (Classifications) | 27242700 |
| eCl@ss 6.0 (Classifications) | 27242200 |
| eCl@ss 7.0 (Classifications) | 27242216 |
| eCl@ss 8.0 (Classifications) | 27242216 |
| eCl@ss 9.0 (Classifications) | 27242216 |
| Interface (Mechanical design) | Digital |
| Realtime clock (Power supply) | Yes |
| Engineering tool (Power supply) | LOGIC+ |
| Supply voltage (Data interfaces) | 24 V DC |
| Power dissipation (Data interfaces) | max. 2.4 W |
| Connection method (Mechanical design) | D-SUB 25 |
| China RoHS (IEC 61131 runtime system) | Environmentally Friendly Use Period = 50 |
| Supply voltage range (Data interfaces) | 19.2 V DC ... 30 V DC |
| Max. current consumption (Data interfaces) | 250 mA |
| Typical current consumption (Data interfaces) | 100 mA |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
Product Description
The logic-Trainer PLC is an Eduline training card for the creation of small automation tasks in a simulated plant
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
PLC logic basic logic module, generation 1, with 16 I/Os, can be plugged onto 8 digital PLC-INTERFACE terminal blocks, can be extended to 48 I/Os, realtime clock, accommodates memory module and Bluetooth adapter (firmware update required, see downloads), Push-in connection
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
