In Stock Hot Product
ECGAV
ECGAV PANASONIC Solenoid valve series EC-G
$0.00USD
3103 in stock
Key Specifications
Item:Specifications
Weight:Main body: 6.5 kg approx.
Details:200 mm 7.874 in width type
Product:Bench Top Cleaning Box
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Weight | Main body: 6.5 kg approx. |
| Details | 200 mm 7.874 in width type |
| Product | Bench Top Cleaning Box |
| Timer mode | 2 sec. / 5 sec. / 10 sec. / synchronized with sensor or with external input selectable by switch |
| Accessories | AC adapter: 1pc., Filter: 1pc., Protective mesh: 1pc. |
| Ion balance | plus or minus10 V or less |
| Part Number | EC-B01-EX |

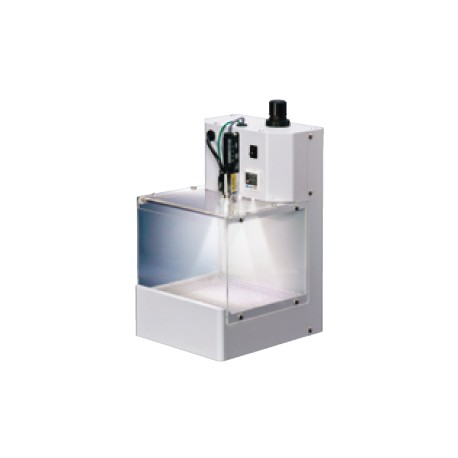

| Product name | Bench Top Ionizer Cleaning Box EC-B |
| Product Number | EC-B01-EX |
| Pulse air mode | Pulse 1 (long) / Pulse 2 (short) / OFF (continuous) selectable by switch |
| Supply voltage | Accessory AC adapter (Note：INPUT: 100-240 V AC plus or minus10 % 50/60 Hz(OUTPUT: 24 V DC))(Note：Please prepare an AC cable separately as it is needed.The following cables are available as optionals: CN-ACCN-C2: AC cable (conforming to CCC), CN-ACKR-C2: AC cable (conforming to KTL)) |
| Ambient humidity | 35 % to 65 % RH (No dew condensation) |
| Applicable fluid | Air (dried clean air) |
| Power consumption | 80 VA or less |
| Supplied air flow | Max. 300 liter/min. (ANR) or less |
| Air pressure range | 0.05 to 0.50 MPa |
| Ambient temperature | 0 to +40 ℃+32 to +104 ℉ |
| Charge removal time | 0.5 sec. approx. or less (plus or minus1,000 V to plus or minus100 V)(Note：Typical value at 100 mm 3.937 in from the front of air outlet at an applied air pressure of 0.50 MPa.) |
| CE marking compliant directives | EMC Directive, RoHS Directive |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
