EC 25

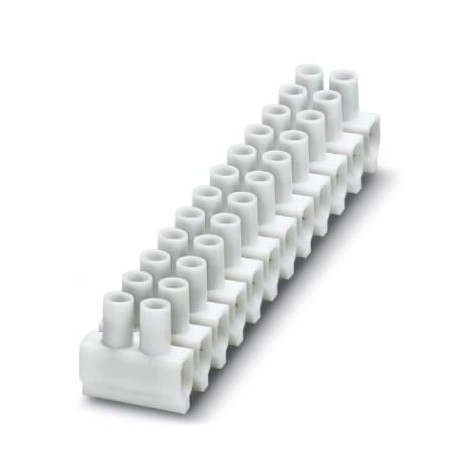

EC 25 3240183 PHOENIX CONTACT Europe connectors
$0.00USD
4863 in stock
Key Specifications
GTIN:4046356457873
Note:Made to Order (non-returnable)
Orderkey:3240183
Catalog page:Page 603 (C-3-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356457873 |
| Note | Made to Order (non-returnable) |
| Orderkey | 3240183 |
| Catalog page | Page 603 (C-3-2017) |
| Packing unit | 10 pc |
| Depth (General) | 30 mm |
| Pitch (General) | 16 mm |
| Width (General) | 30 mm |
| Height (General) | 28 mm |
| Length (General) | 187.3 mm |
| Country of origin | AT (Austria) |
| Custom tariff number | 85369010 |
| Minimum order quantity | 10 pc |
| Screw thread (Dimensions) | M5 |
| Color (Key Commercial Data) | white |
| Drill hole spacing (General) | 16 mm |
| Stripping length (Dimensions) | 9 mm |
| Connection method (Dimensions) | Screw connection |
| Tightening torque max (Dimensions) | 3 Nm |
| Tightening torque, min (Dimensions) | 2 Nm |
| Weight per Piece (excluding packing) | 108.640 g |
| Open side panel (Key Commercial Data) | No |
| Number of levels (Key Commercial Data) | 1 |
| Nominal current IN (Key Commercial Data) | 101 A (with 25 mm² conductor cross section) |
| Nominal voltage UN (Key Commercial Data) | 750 V |
| Insulating material (Key Commercial Data) | PP |
| Number of positions (Key Commercial Data) | 12 |
| Maximum load current (Key Commercial Data) | 101 A (with 25 mm² conductor cross section) |
| Nominal cross section (Key Commercial Data) | 25 mm² |
| Number of connections (Key Commercial Data) | 24 |
| Conductor cross section AWG max. (Dimensions) | 4 |
| Conductor cross section AWG min. (Dimensions) | 8 |
| Conductor cross section solid max. (Dimensions) | 25 mm² |
| Conductor cross section solid min. (Dimensions) | 10 mm² |
| Conductor cross section flexible max. (Dimensions) | 25 mm² |
| Conductor cross section flexible min. (Dimensions) | 10 mm² |
| Ambient temperature (operation) (Key Commercial Data) | -40 °C ... 80 °C |
| Max. AWG conductor cross section, flexible (Dimensions) | 4 |
| Min. AWG conductor cross section, flexible (Dimensions) | 8 |
| Flammability rating according to UL 94 (Connection data) | - |
| Flammability rating according to UL 94 (Key Commercial Data) | - |
| 2 conductors with same cross section, solid max. (Dimensions) | 6 mm² |
| 2 conductors with same cross section, solid min. (Dimensions) | 4 mm² |
| 2 conductors with same cross section, stranded max. (Dimensions) | 6 mm² |
| 2 conductors with same cross section, stranded min. (Dimensions) | 4 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. (Dimensions) | 10 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. (Dimensions) | 4 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. (Dimensions) | 16 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. (Dimensions) | 4 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. (Dimensions) | 4 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. (Dimensions) | 2.5 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. (Dimensions) | 6 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. (Dimensions) | 1.5 mm² |
Product Description
Europa terminal block made of polypropylene, white, for connecting rigid and flexible conductors with and without ferrules with a cross-section of 10 to 25 mm²
