EC 16

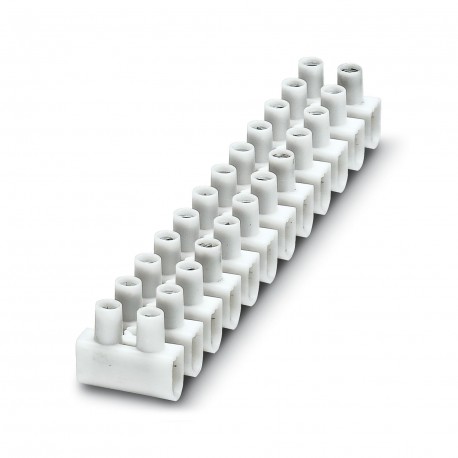

EC 16 3240179 PHOENIX CONTACT Europe connectors
$0.00USD
4590 in stock
Key Specifications
Color:white
Depth:20.7 mm
Pitch:15 mm
Width:20.7 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Color | white |
| Depth | 20.7 mm |
| Pitch | 15 mm |
| Width | 20.7 mm |
| Height | 25 mm |
| Product type | Europe connector |
| Screw thread | M4 |
| Mounting type | direct screw connection |
| Number of rows | 1 |
| Nominal current | 76 A (with 16 mm² conductor cross section) |
| Nominal voltage | 450 V |
| Open side panel | No |
| Stripping length | 8 mm |
| Cross section AWG | 14 ... 6 (converted acc. to IEC) |
| Tightening torque | 1.2 ... 1.5 Nm |
| Drill hole spacing | 15 mm |
| Insulating material | PP |
| Number of positions | 12 |
| Maximum load current | 76 A (with 16 mm² conductor cross section) |
| Nominal cross section | 16 mm² |
| Number of connections | 24 |
| Conductor cross section rigid | 1.5 mm² ... 16 mm² |
| Conductor cross section flexible | 2.5 mm² ... 16 mm² |
| Flammability rating according to UL 94 | - |
| Conductor cross section, flexible [AWG] | 14 ... 6 (converted acc. to IEC) |
| 2 conductors with same cross section, solid | 2.5 mm² ... 4 mm² |
| 2 conductors with same cross section, flexible | 2.5 mm² ... 4 mm² |
| Maximum power dissipation for nominal condition | 2.43 W |
| Flexible conductor cross section (ferrule with plastic sleeve) | 2.5 mm² ... 10 mm² |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 2.5 mm² ... 10 mm² |
| 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 1.5 mm² ... 2.5 mm² |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 1 mm² ... 4 mm² |
Product Description
Europa terminal block made of polypropylene, white, for connecting rigid and flexible conductors with and without ferrules with a cross-section of 1.5 to 16 mm²
