EC 10
EC 10 3240176 PHOENIX CONTACT Europe connectors
$0.00USD
3178 in stock
Key Specifications
GTIN:4046356457811
Orderkey:3240176
Catalog page:Page 603 (C-3-2017)
Packing unit:10 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356457811 |
| Orderkey | 3240176 |
| Catalog page | Page 603 (C-3-2017) |
| Packing unit | 10 pc |
| Depth (General) | 17.3 mm |
| Pitch (General) | 11.5 mm |
| Width (General) | 17.3 mm |
| Height (General) | 23.4 mm |
| Length (General) | 133.8 mm |
| Country of origin | AT (Austria) |
| Custom tariff number | 85369010 |
| Minimum order quantity | 10 pc |
| Screw thread (Dimensions) | M3,5 |
| Color (Key Commercial Data) | white |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Drill hole spacing (General) | 11.5 mm |
| Stripping length (Dimensions) | 7 mm |
| Connection method (Dimensions) | Screw connection |
| Tightening torque max (Dimensions) | 1 Nm |
| Tightening torque, min (Dimensions) | 0.8 Nm |
| Weight per Piece (excluding packing) | 43.100 g |
| Open side panel (Key Commercial Data) | No |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Number of levels (Key Commercial Data) | 1 |
| Nominal current IN (Key Commercial Data) | 57 A (with 10 mm² conductor cross section) |
| Nominal voltage UN (Key Commercial Data) | 450 V (Only use up to 250 V without securing.) |
| Insulating material (Key Commercial Data) | PP |
| Number of positions (Key Commercial Data) | 12 |
| Maximum load current (Key Commercial Data) | 57 A (with 10 mm² conductor cross section) |
| Nominal cross section (Key Commercial Data) | 10 mm² |
| Number of connections (Key Commercial Data) | 24 |
| Conductor cross section AWG max. (Dimensions) | 8 |
| Conductor cross section AWG min. (Dimensions) | 16 |
| Conductor cross section solid max. (Dimensions) | 10 mm² |
| Conductor cross section solid min. (Dimensions) | 1 mm² |
| Conductor cross section flexible max. (Dimensions) | 10 mm² |
| Conductor cross section flexible min. (Dimensions) | 1 mm² |
| Ambient temperature (operation) (Key Commercial Data) | -40 °C ... 80 °C |
| Max. AWG conductor cross section, flexible (Dimensions) | 8 |
| Min. AWG conductor cross section, flexible (Dimensions) | 16 |
| Flammability rating according to UL 94 (Connection data) | - |
| Flammability rating according to UL 94 (Key Commercial Data) | - |
| 2 conductors with same cross section, solid max. (Dimensions) | 2.5 mm² |
| 2 conductors with same cross section, solid min. (Dimensions) | 1 mm² |
| 2 conductors with same cross section, stranded max. (Dimensions) | 2.5 mm² |
| 2 conductors with same cross section, stranded min. (Dimensions) | 1.5 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. (Dimensions) | 4 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. (Dimensions) | 1.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. (Dimensions) | 6 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. (Dimensions) | 1.5 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. (Dimensions) | 1.5 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. (Dimensions) | 0.75 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. (Dimensions) | 1.5 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. (Dimensions) | 0.5 mm² |
Product Description

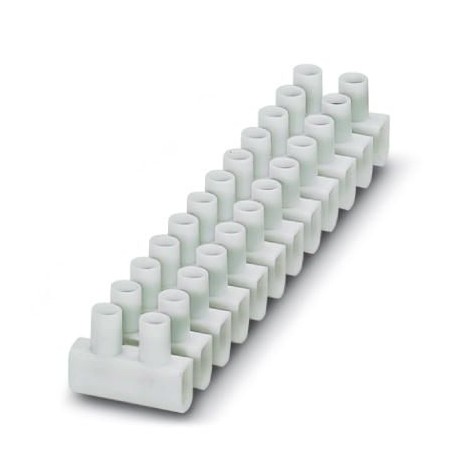

Europa terminal block made of polypropylene, white, for connecting rigid and flexible conductors with and without ferrules with a cross-section of 1 to 10 mm²
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
