EBPL 2-3,81

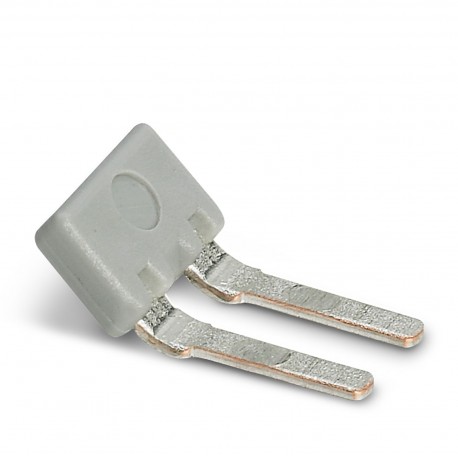

EBPL 2-3,81 1733495 PHOENIX CONTACT Insertion bridge
$0.39USD
25683 in stock
Key Specifications
Note:WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Pitch:3.81 mm
Product line:COMBICON Connectors Special
Product type:Bridge
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Pitch | 3.81 mm |
| Product line | COMBICON Connectors Special |
| Product type | Bridge |
| Number of rows | 1 |
| Product family | EBP |
| Color (Housing) | gray (7042) |
| Article revision | 00 |
| Contact material | Cu alloy |
| Insulating material | PA |
| Number of positions | 2 |
| Number of potentials | 2 |
| Number of connections | 2 |
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | V0 |
| Glow wire flammability index GWFI according to EN 60695-2-12 | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 775 |
| Temperature for the ball pressure test according to EN 60695-10-2 | 125 °C |
Product Description
Insertion bridge for connectors with screw connection in pitch of 3.81 mm
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
