EBF90-23-32/B

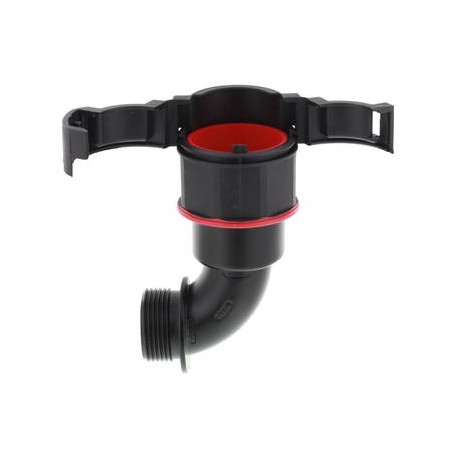

EBF90-23-32/B 10108894 WISKA Bending fitting 90º PA black IP68 for tube DN23/28, thread M32
$0.00USD
3996 in stock
Key Specifications
NW (Features):23
Lead (Features):1,5
Type (Features):EBF90-23-32-BK
UL 1696 (Features):Yes
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| NW (Features) | 23 |
| Lead (Features) | 1,5 |
| Type (Features) | EBF90-23-32-BK |
| UL 1696 (Features) | Yes |
| Width B (Features) | 100,9 mm |
| Ø inside (Features) | 19 mm |
| Thread type (Features) | M |
| Ø Gasket F (Features) | 38 mm |
| Key width SW (Features) | 36 mm |
| Packing unit (Features) | 25 |
| Product Color (Features) | RAL 9005 |
| Temp. range max (Features) | 100 °C |
| Temp. range min (Features) | -40 °C |
| Total length TL (Features) | 55,5 mm |
| Protection class (Features) | IP68, IP66 |
| Operational areas (Features) | EN 45545 - Railway |
| Order no. RAL 9005 (Features) | 10108894 |
| ETIM-Classification (Features) | EC001176 |
| Ø Connection thread D (Features) | 32 |
| Material sealing gasket (Features) | TPU |
| Type of conduit fitting (Features) | 90° Angle |
| Length screw-in thread L (Features) | 13 mm |
| Material Conduit fitting (Features) | polyamide UL94-V0 |
| Material Connection thread (Features) | polyamide UL94-V0 |
Product Description
Conduit fitting, 90° angle, plastic
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
