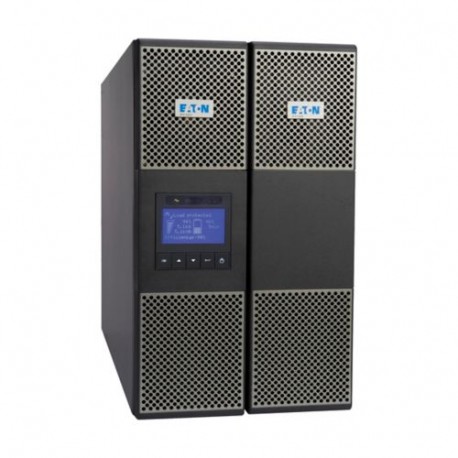

Eaton 9PX 3000i RT2U Netpack
Eaton 9PX 3000i RT2U Netpack 9PX3000IRTN 9103-83800-KIT EATON ELECTRIC Eaton 9PX 3000i RT2U Netpack
$0.00USD
3941 in stock
Key Specifications
Feature Name:Feature Value
SNMP (EF005284):Yes
Depth (EF000049):605 mm
Width (EF000008):440 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| SNMP (EF005284) | Yes |
| Depth (EF000049) | 605 mm |
| Width (EF000008) | 440 mm |
| Height (EF000040) | 86.5 mm |
| Weight (EF000167) | 27.57 kg |
| Modular (EF007977) | No |
| Voltage type (EF000187) | AC |
| Input voltage (EF003840) | 100 V |
| USB interface (EF002039) | No |
| Output voltage (EF003933) | 200 V |
| USV- technology (EF005380) | Online |
| Input connection (EF009726) | C20 |
| Construction type (EF000767) | 482.6 mm (19 inch) device |
| Primary frequency (EF009272) | 40 Hz |
| Overall efficiency (EF009406) | 94 % |
| Output power factor (EF009405) | 1 |
| Secondary frequency (EF009273) | 50 Hz |
| Output apparent power (EF009898) | 3000 VA |
| Efficiency in eco-mode (EF009407) | 98 % |
| Output effective power (EF009897) | 3000 W |
| Auto shut down function (EF009276) | Yes |
| Bridging time full load (EF000428) | 9.5 min |
| Number of phases primary (EF009275) | 1 |
| Number of phases secondary (EF009274) | 1 |
| Potential free switch contact (EF003626) | Yes |
| Suitable for network-management (EF000432) | Yes |
| Number of output connections C13 (EF009727) | 8 |
| Number of output connections C19 (EF009728) | 2 |
| With communication interface RS-232 (EF007312) | No |
| Max. voltage distortion output (linear load) (EF009404) | 3 % |
Product Description
Eaton 9PX UPS Netpack, 3000 VA, 3000 W, Input: C20, Outputs: (8) C13, (2) C19, Rack/tower, 2U, Network card included
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
