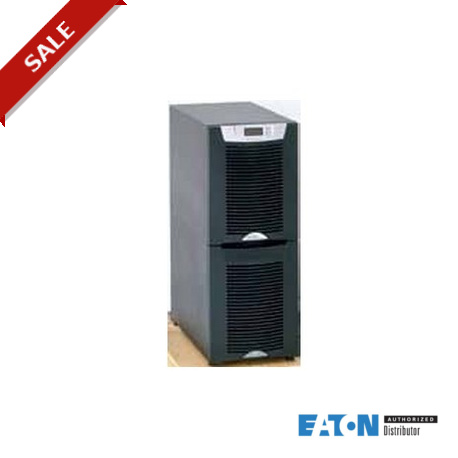

Eaton 9155-20-NHS-0
Eaton 9155-20-NHS-0 1026638 EATON ELECTRIC Eaton 9155-20-NHS-0
$0.00USD
4744 in stock
Key Specifications
Feature Name:Feature Value
SNMP (EF005284):Yes
Depth (EF000049):494 mm
Width (EF000008):758 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| SNMP (EF005284) | Yes |
| Depth (EF000049) | 494 mm |
| Width (EF000008) | 758 mm |
| Height (EF000040) | 1684 mm |
| Weight (EF000167) | 200 kg |
| Modular (EF007977) | No |
| Voltage type (EF000187) | AC |
| Input voltage (EF003840) | 380 V |
| Output voltage (EF003933) | 380 V |
| USV- technology (EF005380) | Online |
| Input connection (EF009726) | Fixed connection |
| Construction type (EF000767) | Free standing model |
| Primary frequency (EF009272) | 50 Hz |
| Overall efficiency (EF009406) | 0 % |
| Output power factor (EF009405) | 0.9 |
| Secondary frequency (EF009273) | 50 Hz |
| Output apparent power (EF009898) | 20000 VA |
| Efficiency in eco-mode (EF009407) | 0 % |
| Output effective power (EF009897) | 18000 W |
| Auto shut down function (EF009276) | Yes |
| Number of phases primary (EF009275) | 3 |
| Number of phases secondary (EF009274) | 1 |
| Potential free switch contact (EF003626) | Yes |
| Suitable for network-management (EF000432) | Yes |
| Number of output connections C13 (EF009727) | 0 |
| Number of output connections C19 (EF009728) | 0 |
| Number of output connections fixed connection (EF009730) | 1 |
| Number of output connections with protective contact CEE 7/3 (type F) (EF009729) | 0 |
Product Description
9155-20-NHS-0
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
