EASY-E4-DC-4PE1

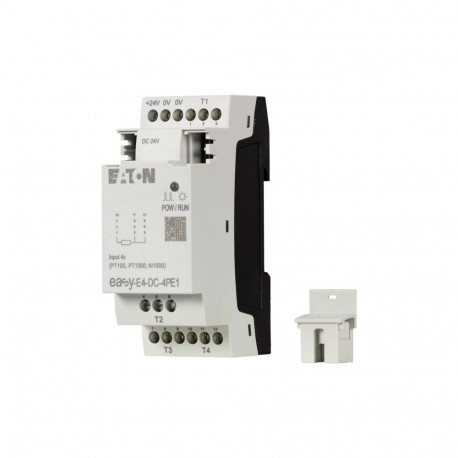

EASY-E4-DC-4PE1 197224 Y7-197224 EATON ELECTRIC I/O expansion, For use with easyE4 with temperature measurin..
$0.00USD
3547 in stock
Key Specifications
Feature Name:Feature Value
Depth (EF000049):58 mm
Width (EF000008):36 mm
Height (EF000040):90 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Depth (EF000049) | 58 mm |
| Width (EF000008) | 36 mm |
| Height (EF000040) | 90 mm |
| Expandable (EF000119) | Yes |
| Redundancy (EF003156) | No |
| Basic device (EF007279) | No |
| With display (EF000458) | No |
| IO link master (EF007298) | No |
| Expansion device (EF007163) | Yes |
| Power consumption (EF000346) | 1 W |
| Supply voltage DC (EF007534) | 20.4 V |
| Switching current (EF000188) | 0 A |
| With relay output (EF003198) | No |
| Radio standard GSM (EF008524) | No |
| Radio standard GPRS (EF008523) | No |
| Radio standard UMTS (EF008525) | No |
| Rack-assembly possible (EF007018) | No |
| With optical interface (EF003028) | No |
| With time switch clock (EF000256) | No |
| Front built-in possible (EF007016) | Yes |
| Supply voltage AC 50 Hz (EF007532) | 0 V |
| Supply voltage AC 60 Hz (EF007533) | 0 V |
| Number of digital inputs (EF001992) | 0 |
| Radio standard Bluetooth (EF007178) | No |
| Degree of protection (IP) (EF005474) | IP20 |
| Number of analogue inputs (EF001994) | 4 |
| Number of digital outputs (EF001993) | 0 |
| Number of analogue outputs (EF001995) | 0 |
| Radio standard WLAN 802.11 (EF007179) | No |
| SIL according to IEC 61508 (EF009889) | None |
| Suitable for rail mounting (EF003972) | Yes |
| Number of HW-interfaces USB (EF003025) | 0 |
| Supporting protocol for ASI (EF003051) | No |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for KNX (EF003055) | No |
| Supporting protocol for LON (EF003017) | No |
| Number of HW-interfaces other (EF003027) | 0 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Suitable for safety functions (EF001597) | No |
| Voltage type (supply voltage) (EF002991) | DC |
| Wall mounting/direct mounting (EF007020) | Yes |
| Number of HW-interfaces RS-232 (EF003021) | 0 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Number of HW-interfaces RS-485 (EF003023) | 0 |
| Supporting protocol for Modbus (EF003057) | Yes |
| Supporting protocol for SERCOS (EF006657) | No |
| Supporting protocol for TCP/IP (EF003050) | Yes |
| Supporting protocol for SUCONET (EF003060) | No |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of HW-interfaces wireless (EF006933) | 0 |
| Supporting protocol for EtherCAT (EF017564) | No |
| Supporting protocol for INTERBUS (EF003054) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Explosion safety category for gas (EF003997) | None |
| Supporting protocol for DeviceNet (EF003059) | No |
| Supporting protocol for PROFIsafe (EF007526) | No |
| Explosion safety category for dust (EF003998) | None |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Supporting protocol for EtherNet/IP (EF007521) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for other bus systems (EF003062) | No |
| Certified for UL hazardous location class I (EF017622) | Yes |
| Number of HW-interfaces industrial Ethernet (EF003020) | 0 |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Certified for UL hazardous location class II (EF017625) | No |
| Certified for UL hazardous location class III (EF017627) | No |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Certified for UL hazardous location division 1 (EF017628) | No |
| Certified for UL hazardous location division 2 (EF017629) | Yes |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Certified for UL hazardous location group D (propane) (EF017636) | Yes |
| Certified for UL hazardous location group B (hydrogen) (EF017633) | No |
| Certified for UL hazardous location group C (ethylene) (EF017635) | Yes |
| Certified for UL hazardous location group A (acetylene) (EF017632) | Yes |
| Certified for UL hazardous location group E (metal dusts) (EF017637) | No |
| Certified for UL hazardous location group F (carbonaceous dusts) (EF017638) | No |
| Certified for UL hazardous location group G (non-conductive dusts) (EF017639) | No |
Product Description
EASY-E4-DC-4PE1
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
