E8F2-B10B

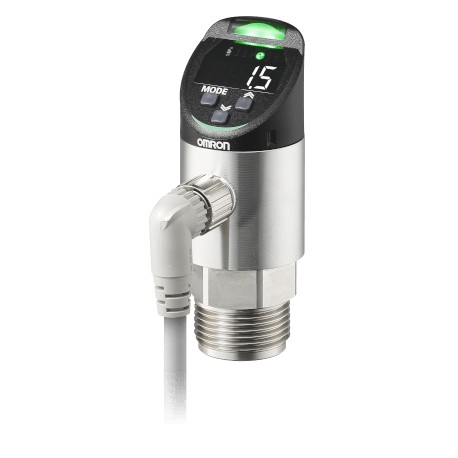

E8F2-B10B E8F20006B 127917 OMRON Pressure switch display 2 PNP outputs. 0-1 MPa
$420.36USD
71 in stock
Key Specifications
(Specifications & ordering info):Female for adapter G1/4
A (Specifications & ordering info):43.3
B (Specifications & ordering info):21.1
C (Specifications & ordering info):13
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| (Specifications & ordering info) | Female for adapter G1/4 |
| A (Specifications & ordering info) | 43.3 |
| B (Specifications & ordering info) | 21.1 |
| C (Specifications & ordering info) | 13 |
| D (Specifications & ordering info) | 9.2 |
| E (Specifications & ordering info) | 34 |
| F (Specifications & ordering info) | 3.7 |
| G (Specifications & ordering info) | 17 |
| 5 m (Specifications & ordering info) | XS5W-D422-G81-F |
| NPN (Specifications & ordering info) | E8PC-010-E |
| Type (Specifications & ordering info) | Appearance |
| Model (Specifications & ordering info) | E8PC-YA-A18 |
| Liquid (Specifications & ordering info) | 0 to 10 MPa |
| Thread (Specifications & ordering info) | G3/4×R1/8 |
| Weight (Specifications & ordering info) | Approx.190 g |
| IO-Link (Specifications & ordering info) | IO-Link specification |
| Altitude (Specifications & ordering info) | 2,000 m or less |
| L-shaped (Specifications & ordering info) | 2 m |
| Material (Specifications & ordering info) | Wetted part |
| Baud rate (Specifications & ordering info) | E8PC-⬜⬜⬜D: COM2 (38.4kbps)E8PC-⬜⬜⬜T: COM3 (230.4Kbps) |
| PNP(COM3) (Specifications & ordering info) | E8PC-010T-E |
| Appearance (Specifications & ordering info) | Type |
| Hysteresis (Specifications & ordering info) | Variable |
| 0 to 40 MPa (Specifications & ordering info) | PNP |
| Accessories (Specifications & ordering info) | Throttle (Model E8PC-YSand E8PC-YS-N), one eachO-ring × 1 (Model E8PC-010: Model E8PC-YL-1, Model E8PC-100/400:Model E8PC-YL-2)Ferrite core × 1 (TDK's Model ZCAT1730-0730A)User's manual (Japanese, English, and Chinese), one eachCompliance sheetIndex list |
| Data length (Specifications & ordering info) | PD Size: 6 byteOD Size: 1 byte (M-sequence type: TYPE_2_V) |
| Window mode (Specifications & ordering info) | Judge if the measured value iswithin the upper and lower limits. |
| Power supply (Specifications & ordering info) | Power supply voltage |
| Delay setting (Specifications & ordering info) | 1 to 9999 ms(Select a function from invalid, ON delay, OFF delay, and one-shot.) |
| Display range (Specifications & ordering info) | –0.20 to 1.10 MPa |
| Pressure type (Specifications & ordering info) | Gauge pressure |
| Burst pressure (Specifications & ordering info) | 8 MPa |
| Display method (Specifications & ordering info) | Numerical value indication: 4-digit 7-segment white LED with inverting functionStatus indicator: Normal operation (green), status indication (orange), and error (red) The content of status indication is selectable.Output indicator: OUT1 operation (orange), OUT2 operation (orange)Unit indication: E8PC-⬜⬜⬜⬜: MPa (white),E8PC-⬜⬜⬜⬜-E: MPa (white), bar (white), psi (white), °C (white)IO-Link indicator: Lighting when communications are in progress (green) |
| External input (Specifications & ordering info) | One-point teaching, zero point adjustment input (selectable, initial status: invalid)short-circuit current 1.5 mA or less, input time 20 ms or more |
| Compatiblefluid (Specifications & ordering info) | Gas and fluid not corroding thematerial of the wetted part (such as water, glycol solution, andoil) |
| Connectionmethod (Specifications & ordering info) | M12, 4-pole connector type |
| Pollution degree (Specifications & ordering info) | 3 |
| COM3 (230.4 kbps) (Specifications & ordering info) | E8PC-400T-E |
| L-shaped/l-shaped (Specifications & ordering info) | 2 m |
| Power consumption (Specifications & ordering info) | 1,200 mW or less(When power supply voltage is 30 V, current consumption must be 40 mA or less.When power supply voltage is 10 V, current consumption must be 120 mA or less.) |
| Protectioncircuit (Specifications & ordering info) | Power supply reverse connectionprotection, output short-circuit protection, and output reverseconnection protection |
| Connectingdiameter (Specifications & ordering info) | G3/4 male (Use the optional adapterto convert the diameter) Connection strength 20 N·m |
| Display resolution (Specifications & ordering info) | 0.001 MPa |
| Impact (endurance) (Specifications & ordering info) | 500 m/s2, three timesin X/Y/Z direction each |
| Installation place (Specifications & ordering info) | Indoor |
| Minimum cycle time (Specifications & ordering info) | E8PC-⬜⬜⬜D (COM2): 3.2 msE8PC-⬜⬜⬜T (COM3): 2.0 ms |
| Nominal diameter A (Specifications & ordering info) | Nominal diameter B |
| Protective structure (Specifications & ordering info) | IP67 |
| Environmentresistance (Specifications & ordering info) | Ambient temperature range |
| Ambient humidity range (Specifications & ordering info) | –35 to 85%RH in operation andstorage, respectively (no condensation) |
| Other than wetted part (Specifications & ordering info) | Head: PPSU, display unit: PES,button: PBT, chassis: SUS304L |
| Output ch3(selectable) (Specifications & ordering info) | Control output |
| Output ch4(selectable) (Specifications & ordering info) | Control output |
| Socket on one cable end (Specifications & ordering info) | Straight |
| Temperature repeatability (Specifications & ordering info) | ±1°C |
| Pressure monitoring precision (Specifications & ordering info) | ±1.0% of F.S. or less |
| Shock resistance(destruction) (Specifications & ordering info) | 10 to 2000 Hz, double amplitude1.5 mm, 2 hours in X/Y/Z direction each |
| Temperature monitoringprecision (Specifications & ordering info) | ±4°C |
| Vibration resistance(destruction) (Specifications & ordering info) | 1000 VAC, 50/60 Hz, 1 min. betweencurrent-carrying parts and case |
| Control outputjudgment(selectable) (Specifications & ordering info) | Standard mode |
| Socket and plug on cable ends2Straighttype/L-shape type combinations are also available. (Specifications & ordering info) | Straight/straight |
| Applicable fluid temperature2Ifthe pipe temperature exceeds 70°C, do not contact any cables withthe pipe. (Specifications & ordering info) | –20 to +100°C (no icing or condensation) |
| Analog current output2Donot connect analog current output with the master unit of IO-Link.Otherwise, the unit might fail. (Specifications & ordering info) | Pressure analog output / Temperature analog outputCurrent output 4 to 20 mA (maximum load resistance 350Ω or less)(Display value ± 2% of F.S.) |
| Pressure response time2Themaximum actual response time has error of 1 ms when the set responsetime is 3 to 10 ms, 5 ms when it is 11 to 100 ms, and +5% when itis 101 ms or more. (Specifications & ordering info) | Control output: Select 3 to 6000ms Analog output: Set value + 2 ms (90% response) |
| Ambient temperature characteristics2Theambient temperature characteristics are prescribed based on thevalue measured using oil as applying a pressure value of 50% ofthe maximum rated pressure. (Specifications & ordering info) | ±0.6% of F.S./10°C |
| Pressuremonitoring2The pressure precision is defined based on the values measured in the ordinary temperature environment (approx. 23°C) using water at the ordinary temperature (approx. 23°C). (Specifications & ordering info) | Rated pressure range |
| Withstand pressure2Eveninstantaneous pressure fluctuation such as water hammer must bewithin the withstand pressure. If instantaneous pressure fluctuationis expected, use the throttle included in the package. (Specifications & ordering info) | 4 MPa |
| Pressure repeatability2Thepressure repeatability is the error of the detection point whenpressure is applied repeatedly in the ordinary temperature environment(approx. 23°C) using water at the ordinary temperature (approx.23°C) in the rated pressure range. (Specifications & ordering info) | ±0.3% of F.S. or less |
| Temperaturemonitoring2The temperature monitoring precision is prescribed based on the value measured using water.Temperature measurements are affected by both of the temperatures, the medium and the piping.Temperature measuring elements are installed on the back surface of the piezoelectric element (inside the product) and used to measure the temperature. It might take long for the measured value to get stable according to the heat transmission speed. (Specifications & ordering info) | Temperature monitoringrated range |
Product Description
Display pressure switch 2 PNP outputs. 0-1 MPa
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Please contact your OMRON sales representativeregarding the IO-Link setup file (IODD file).
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
