E71-COP-M8

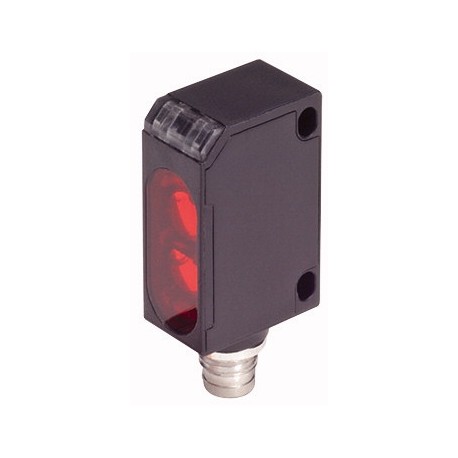

E71-COP-M8 100428 EATON ELECTRIC Proximity switch, optical, long range 80cm, 4L, 10-30VDC, NPN, M8
$0.00USD
4050 in stock
Key Specifications
Feature Name:Feature Value
Light dot (EF004030):0 mm²
Sensing mode (EF007503):Light-/dark switching
Voltage type (EF000187):DC
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Light dot (EF004030) | 0 mm² |
| Sensing mode (EF007503) | Light-/dark switching |
| Voltage type (EF000187) | DC |
| Width sensor (EF007094) | 12 mm |
| Response time (EF004094) | 1 ms |
| Type of light (EF004029) | Polarity free red light |
| With reflector (EF007448) | No |
| Diameter sensor (EF007111) | 0 mm |
| Height of sensor (EF007283) | 32 mm |
| Housing material (EF001596) | Plastic |
| Length of sensor (EF007334) | 20 mm |
| Setting procedure (EF003994) | Other |
| Pre failure notice (EF004129) | No |
| With time function (EF003582) | No |
| Ambient temperature (EF002386) | -25 °C |
| Max. output current (EF001315) | 100 mA |
| Switching frequency (EF003587) | 500 Hz |
| With restart blockage (EF004054) | No |
| Laser protection class (EF004027) | None |
| Max. switching distance (EF007367) | 800 mm |
| Min. reflector distance (EF004046) | 0 mm |
| Type of switch function (EF003963) | Other |
| Rated switching distance (EF008289) | 800 mm |
| Type of switching output (EF003962) | PNP |
| Wavelength of the sensor (EF004132) | 660 nm |
| Construction type housing (EF004008) | Cuboid |
| Degree of protection (IP) (EF005474) | IP66 |
| With other analogue output (EF007485) | No |
| Degree of protection (NEMA) (EF011959) | Other |
| Material of optical surface (EF004134) | Plastic |
| Type of electric connection (EF003961) | Connector M8 |
| Analogue output 0 V ... 10 V (EF006807) | No |
| Suitable for safety functions (EF001597) | No |
| Analogue output 0 mA ... 20 mA (EF006808) | No |
| Analogue output 4 mA ... 20 mA (EF006810) | No |
| Analogue output -10 V ... +10 V (EF006809) | No |
| Rated control supply voltage DC (EF003980) | 10 V |
| With communication interface SSD (EF007315) | No |
| With communication interface SSI (EF007316) | No |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| With communication interface RS-232 (EF007312) | No |
| With communication interface RS-422 (EF007313) | No |
| With communication interface RS-485 (EF007314) | No |
| With communication interface CANOpen (EF007307) | No |
| Rated control supply voltage AC 50 Hz (EF003978) | 0 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 0 V |
| With communication interface Ethernet (EF007309) | No |
| With communication interface INTERBUS (EF007310) | No |
| With communication interface PROFIBUS (EF007311) | No |
| With communication interface analogue (EF007305) | No |
| Transmission range of the safety field (EF004098) | 0 m |
| With communication interface DeviceNet (EF007308) | No |
| Max. output current at protected output (EF004035) | 0 mA |
| Type of safety according to IEC 61496-1 (EF004105) | 1 |
| Number of protected semiconductor outputs (EF003951) | 0 |
| Switching voltage of OSSD at state "high" (EF004102) | 30 V |
| With communication interface AS-Interface (EF007306) | No |
| Type of interface for safety communication (EF003956) | Other |
| Number of protected contact energized outputs (EF003952) | 0 |
| With monitoring function downstream switching devices (EF004052) | No |
| Number of semiconductor outputs with signalling function (EF003945) | 1 |
| Number of contact energized outputs with signalling function (EF003946) | 0 |
Product Description
E71 NanoView series, product features: optical miniature sensor, very minimal size in cube form, IP66_x, status LED for Power und Output, light and dark switching, visible red LED beam enables simple
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Product Standards UL 508; CSA-C22.2 No. 14; IEC60947-5-2; CE marking
