E5CC-RX3D5M-005

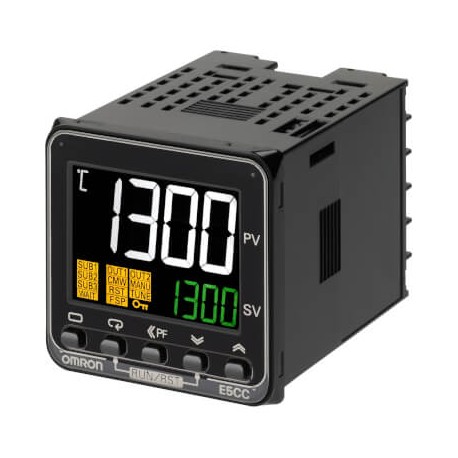

E5CC-RX3D5M-005 E5CC3507H 689411 OMRON Temperature Controller, 1/16 DIN (48 x 48 mm), 1 x Relay Output, 3 AU..
$271.17USD
68 in stock
Key Specifications
Size:1/16 DIN (48 x 48 mm)
Terminal:Screw
Functions:ON/OFF control, PID control
Control output:Relay
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Size | 1/16 DIN (48 x 48 mm) |
| Terminal | Screw |
| Functions | ON/OFF control, PID control |
| Control output | Relay |
| Supply voltage AC | 20.4-26.4 V |
| Supply voltage DC | 20.4-26.4 V |
| Temperature range | -200-2300 °C |
| Number of event inputs | 4 |
| Temperature input type | B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U |
| Number of alarm outputs | 3 |
| Number of control loops | 1 |
| Linear analog input type | 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
