E57-18LE12-CD

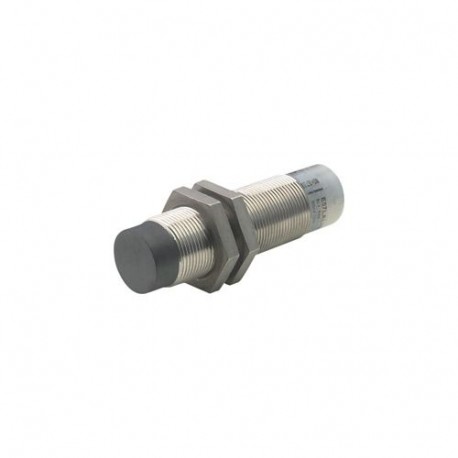

E57-18LE12-CD 135948 Y7-135948 EATON ELECTRIC Proximity switch Inductive 1 NO Sn 12mm 3 wire 6 48 V DC NPN M..
$0.00USD
4771 in stock
Key Specifications
Feature Name:Feature Value
Cascadable (EF000507):No
Voltage type (EF000187):DC
Width sensor (EF007094):0 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Cascadable (EF000507) | No |
| Voltage type (EF000187) | DC |
| Width sensor (EF007094) | 0 mm |
| Supply voltage (EF004127) | 6 V |
| Coating housing (EF001601) | Other |
| Diameter sensor (EF007111) | 18 mm |
| Height of sensor (EF007283) | 0 mm |
| Housing material (EF001596) | Metal |
| Length of sensor (EF007334) | 86 mm |
| Type of actuation (EF006949) | Metallic Target |
| Type of interface (EF006977) | None |
| Switching distance (EF003647) | 12 mm |
| Switching frequency (EF003587) | 800 Hz |
| Compression-resistant (EF007106) | No |
| Type of switch function (EF003963) | Normally open contact |
| Type of switching output (EF003962) | NPN |
| Construction type housing (EF004008) | Cylinder, screw-thread |
| SIL according to IEC 61508 (EF009889) | None |
| Degree of protection (NEMA) (EF011959) | 4X, 6, 13 |
| Type of electric connection (EF003961) | Plug-in connection |
| Suitable for safety functions (EF001597) | No |
| Rated control supply voltage DC (EF003980) | 6 V |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Rated control supply voltage AC 50 Hz (EF003978) | 0 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 0 V |
| Max. output current at protected output (EF004035) | 0 mA |
| Mechanical mounting condition for sensor (EF004041) | Concise |
| Number of protected semiconductor outputs (EF003951) | 0 |
| Type of interface for safety communication (EF003956) | None |
| Number of protected contact energized outputs (EF003952) | 0 |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| With monitoring function downstream switching devices (EF004052) | No |
| Number of semiconductor outputs with signalling function (EF003945) | 1 |
| Number of contact energized outputs with signalling function (EF003946) | 0 |
Product Description
E57-18LE12-CD
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
