E54-CT3

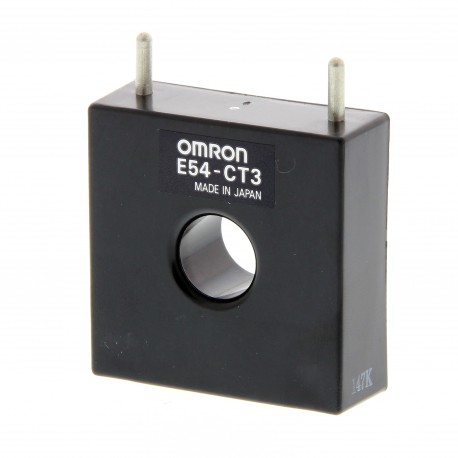

E54-CT3 E54 9003F 129612 OMRON 120A Current Transformer
$60.42USD
200 in stock
Key Specifications
Item (Accessories):Load power supply voltage range
Weight (Accessories):Approx. 200 g (including terminal cover)
Indications (Accessories):LED indicators
Alarm output (Accessories):NPN open collector, one outputMax. applicable voltage: 30 VDCMax. load current: 50 mAResidual voltage: 1.5 V max.Leakage current: 0.4 mA max.
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item (Accessories) | Load power supply voltage range |
| Weight (Accessories) | Approx. 200 g (including terminal cover) |
| Indications (Accessories) | LED indicators |
| Alarm output (Accessories) | NPN open collector, one outputMax. applicable voltage: 30 VDCMax. load current: 50 mAResidual voltage: 1.5 V max.Leakage current: 0.4 mA max. |
| Name (Ordering information) | Hole diameter |
| 100 to 240 VAC (Accessories) | 400 to 480 VAC |
| Trigger output (Accessories) | One voltage output for each channel, 12 VDC ±15%, max. load current: 21 mA(with built-in short-circuit protection circuit) |
| Shock resistance (Accessories) | 300 m/s2three times each in six directions along three axes |
| Memory protection (Accessories) | EEPROM (non-volatile memory) (number of writes: 100,000) |
| Power consumption (Accessories) | 16 VA max. |
| 12.0 dia. (Ordering information) | E54-CT3 |
| Approved standards (Accessories) | UL508 (Listing), CSA22.2 No. 14EN50178EN61000-6-4 (EN55011: 1998, A1: 1999 Class A, Group 1)EN61000-6-2: 2001 |
| Dielectric strength (Accessories) | 2,000 VAC, 50/60 Hz for 1 min between primary and secondary |
| Storage temperature (Accessories) | -25 to 65°C (with no icing or condensation) |
| Degree of protection (Accessories) | IP20 |
| Power supply voltage (Accessories) | 100 to 240 VAC (50/60 Hz) |
| Size in mm (H×W×D) (Accessories) | 76×45×111 |
| Vibration resistance (Accessories) | Vibration frequency: 10 to 55 Hz, acceleration: 50 m/s2in X, Y, and Z directions |
| Insulation resistance (Accessories) | 100 MΩ min. (at 500 VDC) between primary and secondary |
| Operating voltage range (Accessories) | 85 to 264 VAC |
| Installation environment (Accessories) | Overvoltage category III, pollution degree 2 (according to IEC 60664-1) |
| Current transformer input (Accessories) | Single-phase AC, 0 to 50 A (primary current of CT) |
| Load power supply voltage (Accessories) | 100 to 240 VAC |
| Ambient operating humidity (Accessories) | 25 to 85% |
| Manipulated variable input (Accessories) | 0.0 to 100.0% (via RS-485 communications) |
| Current indication accuracy (Accessories) | ±3 A (for models with heater burnout detection) |
| Ambient operating temperature (Accessories) | -10 to 55°C (with no icing or condensation) |
| Load power supply voltage range (Accessories) | 75 to 264 VAC |
| Current transformer (CT) (Ordering information) | 5.8 dia. |
| 8 (Multi-channel power controller for smarter SSR usage) | Not supported |
| Name (Multi-channel power controller for smarter SSR usage) | Number of control channels |
| 400 to 480 VAC (Multi-channel power controller for smarter SSR usage) | G3ZA-8A403-FLK-UTU |
| Multi-channel power controller (Multi-channel power controller for smarter SSR usage) | 4 |
Product Description
Current transformer for heater burnout detection (12mm dia)
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
The G3ZA receives manipulated variables generated by control loops or manual settings via a simple-to-wire RS-485. It regulates the heater power with high precision by driving up to eight standard SSRs. Moreover, the offset control reduces peak power in the supply net.
