E4D12N00BH410

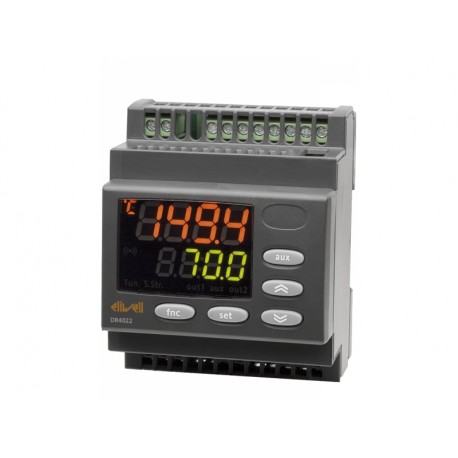

E4D12N00BH410 ELIWELL DR 4020 NTC 12-24Vac-dc
$0.00USD
4478 in stock
Key Specifications
B (Characteristics):PT100
C (Characteristics):TCJ / TCK / TCR - / TCS / TCT
D (Characteristics):0...1V/0...5V / 0...10V / 0...20mA / 4...20mA
F (Characteristics):0...1V/0...5V / 0...10V / 0...20mA / 4...20mA / PT100
Supplier Information
ELIWELL
Products: 982
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| B (Characteristics) | PT100 |
| C (Characteristics) | TCJ / TCK / TCR - / TCS / TCT |
| D (Characteristics) | 0...1V/0...5V / 0...10V / 0...20mA / 4...20mA |
| F (Characteristics) | 0...1V/0...5V / 0...10V / 0...20mA / 4...20mA / PT100 |
| To (Characteristics) | NTC / PTC / PT1000 |
| And (Characteristics) | NTC / PTC / PT1000 / PT100 / TCJ / TCK / TCR - / TCS / TCT |
| Type of probes (Characteristics) | Types of probes selectable from parameter |
| (INDUSTRIAL Control GUIDE 2 DIN SALIDASPARA REGULATION, TEMPERATURE AND PROCESS) | DR4020 |
| B (INDUSTRIAL Control GUIDE 2 DIN SALIDASPARA REGULATION, TEMPERATURE AND PROCESS) | PT100 |
| C (INDUSTRIAL Control GUIDE 2 DIN SALIDASPARA REGULATION, TEMPERATURE AND PROCESS) | TCJ / TCK / TCR - / TCS / TCT |
| D (INDUSTRIAL Control GUIDE 2 DIN SALIDASPARA REGULATION, TEMPERATURE AND PROCESS) | 0...1V/0...5V / 0...10V / 0...20mA / 4...20mA |
| F (INDUSTRIAL Control GUIDE 2 DIN SALIDASPARA REGULATION, TEMPERATURE AND PROCESS) | 0...1V/0...5V / 0...10V / 0...20mA / 4...20mA / PT100 |
| To (INDUSTRIAL Control GUIDE 2 DIN SALIDASPARA REGULATION, TEMPERATURE AND PROCESS) | NTC / PTC / PT1000 |
| And (INDUSTRIAL Control GUIDE 2 DIN SALIDASPARA REGULATION, TEMPERATURE AND PROCESS) | NTC / PTC / PT1000 / PT100 / TCJ / TCK / TCR - / TCS / TCT |
| Model (INDUSTRIAL Control GUIDE 2 DIN SALIDASPARA REGULATION, TEMPERATURE AND PROCESS) | DR 4020 12/24 Vac,12/36 Vdc NTC(PTC-PT1000)OUT:2 RELAYS |
| Power (INDUSTRIAL Control GUIDE 2 DIN SALIDASPARA REGULATION, TEMPERATURE AND PROCESS) | 12...24Va/12...36Vc ±10% 50/60Hz100...240Va ±10% 50/60Hz |
| Format (INDUSTRIAL Control GUIDE 2 DIN SALIDASPARA REGULATION, TEMPERATURE AND PROCESS) | DIN rail |
| Probes (INDUSTRIAL Control GUIDE 2 DIN SALIDASPARA REGULATION, TEMPERATURE AND PROCESS) | NTC, PTC, PT1000 |
| Relays (INDUSTRIAL Control GUIDE 2 DIN SALIDASPARA REGULATION, TEMPERATURE AND PROCESS) | 2 |
| Display (INDUSTRIAL Control GUIDE 2 DIN SALIDASPARA REGULATION, TEMPERATURE AND PROCESS) | decimal point selectable by parameter dual display 4-digit + sign |
| Copy Card (INDUSTRIAL Control GUIDE 2 DIN SALIDASPARA REGULATION, TEMPERATURE AND PROCESS) | If |
| Reference (INDUSTRIAL Control GUIDE 2 DIN SALIDASPARA REGULATION, TEMPERATURE AND PROCESS) | E4D12N00BH410 |
| Dimensions (INDUSTRIAL Control GUIDE 2 DIN SALIDASPARA REGULATION, TEMPERATURE AND PROCESS) | 70 x 85 x 61 mm |
| Connectivity (INDUSTRIAL Control GUIDE 2 DIN SALIDASPARA REGULATION, TEMPERATURE AND PROCESS) | Port TTL for connection to Copy Card |
| Analog inputs (INDUSTRIAL Control GUIDE 2 DIN SALIDASPARA REGULATION, TEMPERATURE AND PROCESS) | 1 input* (see table probes) |
| Analog output (INDUSTRIAL Control GUIDE 2 DIN SALIDASPARA REGULATION, TEMPERATURE AND PROCESS) | - |
| Digital inputs (INDUSTRIAL Control GUIDE 2 DIN SALIDASPARA REGULATION, TEMPERATURE AND PROCESS) | not available |
| Humidity Probe (INDUSTRIAL Control GUIDE 2 DIN SALIDASPARA REGULATION, TEMPERATURE AND PROCESS) | If |
| Supply voltage (INDUSTRIAL Control GUIDE 2 DIN SALIDASPARA REGULATION, TEMPERATURE AND PROCESS) | 12/24Vac-12/36Vdc |
| Type of probes (INDUSTRIAL Control GUIDE 2 DIN SALIDASPARA REGULATION, TEMPERATURE AND PROCESS) | Types of probes selectable from parameter |
| Digital outputs (INDUSTRIAL Control GUIDE 2 DIN SALIDASPARA REGULATION, TEMPERATURE AND PROCESS) | 1 SPDT 3A 250~1 SPST 3A 250~ |
| Pressure Transducer (INDUSTRIAL Control GUIDE 2 DIN SALIDASPARA REGULATION, TEMPERATURE AND PROCESS) | If |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
The thermo-regulators Eliwell series Controls Universal are idealfor all industrial applications that require temperature control with high precision, since the primer of plastic materials to packaging, process control in the processing of raw materials.
