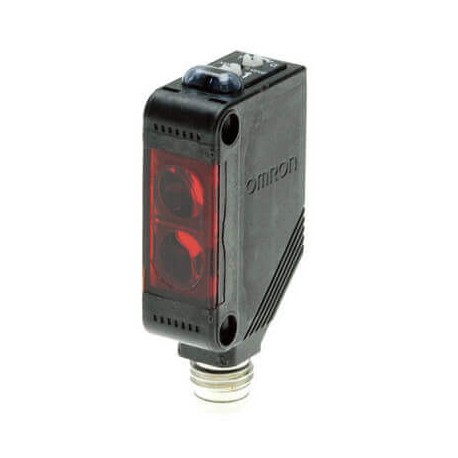

E3Z-L86-IL3
E3Z-L86-IL3 E3Z 8039C E3ZL86IL3OMS OMRON Ecological cc 3h Slr 90mm PNP Spot reduc. M8 IO LINK COM3
$0.00USD
3833 in stock
Key Specifications
():E39-L98
Shape:Cuboid
Features:Narrow beam
Spot size:2.5 mm
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| () | E39-L98 |
| Shape | Cuboid |
| Features | Narrow beam |
| Spot size | 2.5 mm |
| Output type | IO-Link, PNP |
| Thread size | Other |
| Response time | 1 ms |
| Type of light | Polarity free red light |
| Operation mode | Dark-ON, Light-ON |
| Sensing method | Diffuse reflective |
| Setting method | IO-Link, Manual adjustment |
| Material housing | PBT |
| Sensing distance | 90 mm |
| Connection method | Connector M8 - 4 pin |
| IO-Link baud rate | COM3 (230.4 kbps) |
| Power supply voltage | 10-30 V |
| Sensing distance (min.) | 60 mm |
| Product Depth (unpacked) | 20 mm |
| Product Width (unpacked) | 10.8 mm |
| Degree of protection (IP) | IP67 |
| Product Height (unpacked) | 31 mm |
Product Description
Photoelectric sensor, rectangular housing, red LED, diffuse, narrow beam, 90 mm, PNP, Light-ON/Dark-ON, IO-Link COM3, M8 4-pin connector
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
