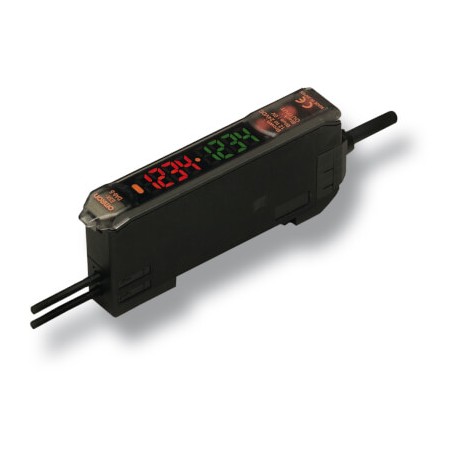

E3X-DAH41-S 2M
E3X-DAH41-S 2M 323830 OMRON Dual Display dc 3 PNP Teach-in LED Infrared
$0.00USD
4539 in stock
Key Specifications
:Fiber amplifierconnector
PNP:53 µs for operation and 55 µs for reset
Item:Order code (for pre-wired types with 2 m cable length)
Shape:Type
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Fiber amplifierconnector | |
| PNP | 53 µs for operation and 55 µs for reset |
| Item | Order code (for pre-wired types with 2 m cable length) |
| Shape | Type |
| Functions | Power tuning |
| NPN output | PNP output |
| PNP output | E3X-DAH41-S, E3X-DAH8-S |
| Responcetime | Super-high-speed mode |
| Standard mode | 1 ms for operation and reset respectively |
| Infrared light | E3X-DAH11-S 2M |
| Timer function | Select from OFF-delay, ON-delay, or one-shot timer. 1 ms to 5 s (1 to 20 ms set in 1-ms increments, 20 to 200 ms set in 10-ms increments,200 ms to 1 s set in 100-ms increments, and 1 to 5 s set in 1 s-increments) |
| Digital displays | Incident level + threshold or user specific |
| Protective circuits | Power supply reverse polarity protection, output short circuit protection, mutual interference prevention |
| Sensitivity setting | Teaching and digital up/down keys |
| Degree of protection | IEC 60529 IP50 (with protective cover attached) |
| High-resolution mode | 4 ms for operation and reset respectively |
| Power supply voltage | 12 to 24 VDC±10%, ripple (p-p) 10% max. |
| Light source (wave length) | Infrared LED |
| Infrared light (fiber amplifier connector)1 | E3X-DAH6-S |
| 30 cm PVC cable with M8 plug connector (4 pin) | E3X-CN21-M3J-2 0.3M |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
The digital fiber amplifiers with infrared LED are ideal for water detection applications or where visible light is not desired.
