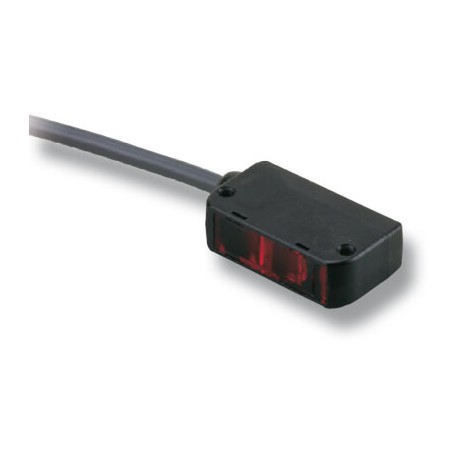

E3S-LS3NWT 2M
E3S-LS3NWT 2M E3SL1324D 679474 OMRON Photoelectric sensor, limited reflective, compact square, 10 to 60 mm r..
$195.48USD
98 in stock
Key Specifications
:
-:-
Yes:E3S-LS3PT 2M
Item:Limited-reflective
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| - | - |
| Yes | E3S-LS3PT 2M |
| Item | Limited-reflective |
| Lens | Acrylic |
| Storage | -25 to 70°C (with no icing or condensation) |
| Material | Case |
| 10 to 60 mm | - |
| 20 to 35 mm | - |
| Sensor type | Sensing distance |
| Response time | 1 ms max. |
| Timer function | Available with E3S-LS3P(W)T models only. Time range: 0.1 to 1.0 s (adjustable) |
| Limited-reflective | 20 to 35 mm (Red light) |
| Ambient temperature | Operating |
| Degree of protection | IEC60529 IP40 |
| Power supply voltage | 12 to 24 VDC±10%, ripple (p-p) 10% max. |
| 10 to 60 mm (Red light) | E3S-LS3NW 2M |
| Light source (wave length) | Red LED (660 nm) |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
The special wide beam optics of the E3S-LS3 ensures reliable detection of structured objects (with holes or different heights) and can be used for example to detect printed circuit boards (PCBs).
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
