E3RB-DP23-F2

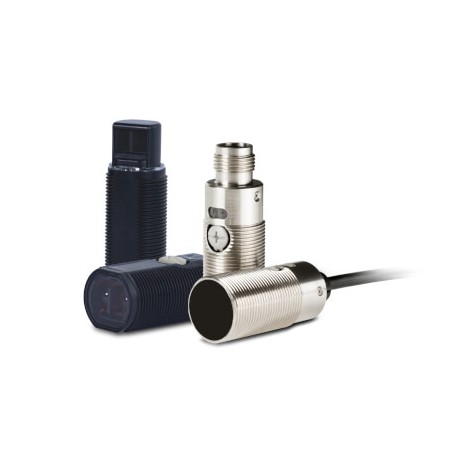

E3RB-DP23-F2 683195 OMRON Photoelectric sensor, M18 radial, metal body, red LED, diffuse, 700mm, PNP, L-ON/D..
$0.00USD
3932 in stock
Key Specifications
(High housing protection):PNPoutput
- (High housing protection):¢
1 m (High housing protection):-
Item (High housing protection):M12 Connector
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| (High housing protection) | PNPoutput |
| - (High housing protection) | ¢ |
| 1 m (High housing protection) | - |
| Item (High housing protection) | M12 Connector |
| Model (High housing protection) | NPNoutput |
| 200 mm (High housing protection) | - |
| 300 mm (High housing protection) | - |
| 700 mm (High housing protection) | - |
| Storage (High housing protection) | -30 to 70°C (with no icing or condensation) |
| Adjuster (High housing protection) | POM |
| Material (High housing protection) | Case and Nut |
| NPN output (High housing protection) | PNP output |
| Sensor type (High housing protection) | Sensing distance |
| Through-beam (High housing protection) | 15 m |
| Response time (High housing protection) | 0.5 ms |
| Operation mode (High housing protection) | Light-ON/Dark-ON selectable by wiring |
| Lens and Display (High housing protection) | PMMA |
| Sensing distance (High housing protection) | 15 m |
| Diffuse reflective (High housing protection) | 100 mm |
| Ambient temperature (High housing protection) | Operating |
| Protection circuits (High housing protection) | Reversed power supply polarity protection, Output short-circuit protection and Reversed output polarity protection |
| Degree of protection (High housing protection) | IEC: IP67, DIN 40050-9: IP69K |
| Power supply voltage (High housing protection) | 10 to 30 VDC (include voltage ripple of 10%(p-p) max.) |
| Sensitivity adjustment (High housing protection) | One-turn adjuster |
| Through-beam (Red LED) (High housing protection) | 20 m |
| Light source (wavelength) (High housing protection) | Red LED (624 nm) |
| Retro-reflective with MSR (High housing protection) | 0.1 to 3 m(with E39-R1S) |
| BGS(background suppression) (High housing protection) | 100 mm |
| Through-beam (Infrared LED) (High housing protection) | 15 m |
| Diffuse-reflective (Red LED) (High housing protection) | 100 mm |
| Coaxial Retro-reflective with MSR (High housing protection) | 0 to 500 mm(with E39-R1S) |
| Diffuse-reflective (Infrared LED) (High housing protection) | 100 mm |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
E3FA/E3FB series represents a new generation of Omron photoelectric sensors with large varieties of reliable and easy-to use photoelectric sensors. Featuring many standard and special functions this line is addressing many kinds of industries such as packaging, ceramics and material handling.
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
