E3JM-DS70R4T-G

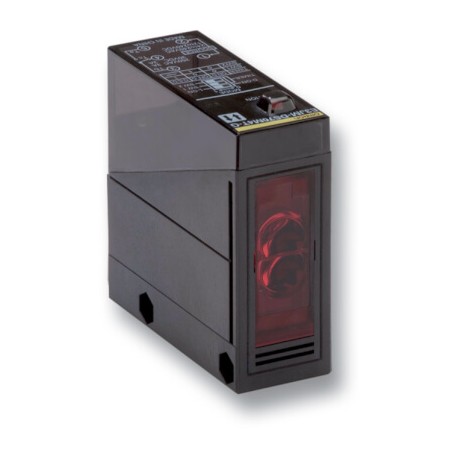

E3JM-DS70R4T-G 232896 OMRON Multialim. Slr 70cm PNP Timing PG13,5
$0.00USD
3082 in stock
Key Specifications
Item:Model
Lens:Methacrylic resin
Cover:Polycarbonate
Timer:E3JM-10M4T-NN
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Model |
| Lens | Methacrylic resin |
| Cover | Polycarbonate |
| Timer | E3JM-10M4T-NN |
| DC SSR | − |
| Material | Case |
| DC SSR output | (E3JM-⬜⬜S4 (T)(-⬜) models) Operate or reset: 5 ms max. |
| Response time | Relay output |
| Sensing method | Appearance |
| Mounting Bracket | Iron |
| Sensing distance | 10 m |
| Connection method | Terminal block |
| Diffuse-reflective | |
| Degree of protection | IEC 60529: IP66 |
| Power supply voltage | 12 to 240 VDC±10%, ripple (p-p): 10% max.24 to 240 VAC±10%, 50/60 Hz |
| Standard sensing object | Opaque: 14.8-mm dia. min. |
| Ambient temperature range | Operating: −25°C to 55°C,Storage: −30°C to 70°C (with no icing or condensation) |
| Light source (wavelength) | Infrared LED (950 nm) |
| Conduit socketthread size:PF1/2 | Conduit socket thread size:PG13.5 |
| Through-beam(Emitter +Receiver)1 | |
| Retro-reflectivewith MSR function | E39-R1 (provided) |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
The square sized E3JM family provides 12 to 240 VDC and 24 to 240 VAC power supply voltage, an enhanced sensing distance and a timer function.
