In Stock Hot Product
E3FB-BP12 2M

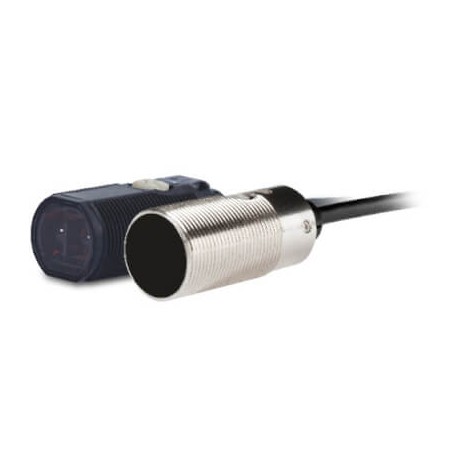

E3FB-BP12 2M E3FB2032A 378922 OMRON Metal Obj Transp Mirror (not incl) 0.1-2m PNP Cable 2m
$0.00USD
4246 in stock
Key Specifications
:
-:⬛
Item:M12 Connector
Model:NPNoutput
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| - | ⬛ |
| Item | M12 Connector |
| Model | NPNoutput |
| Storage | -30 to 70°C (with no icing or condensation) |
| Material | Case and Nut |
| NPN output | PNP output |
| Sensor type | Sensing distance |
| Response time | 0.5 ms |
| Operation mode | Light-ON/Dark-ON selectable by wiring |
| Lens and Display | PMMA |
| Sensing distance | 10 to 50 mm |
| Ambient temperature | Operating |
| Protection circuits | Reversed power supply polarity protection, Output short-circuit protection and Reversed output polarity protection |
| Degree of protection | IEC: IP67, DIN 40050-9: IP69K |
| Power supply voltage | 10 to 30 VDC (include voltage ripple of 10%(p-p) max.) |
| Sensitivity adjustment | One-turn adjuster |
| Light source (wavelength) | Red LED (624 nm) |
| Limited distance reflective | 10 to 50 mm |
| Retro-reflective withP-opaquing function1 | 0.1 to 2m(with E39-RP1) |
| Coaxial retro-reflective withP-opaquing function1 | 0 to 500 mm(with E39-RP1) |
Product Description
Photoelectric sensor, M18 threaded barrel, metal, red LED, retro-reflective, transparent object, 2 m, PNP, Light-ON/Dark-ON, 2 m cable
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
The E3FA/E3FB-B/-V provides enhanced detection stability for the detection of transparent objects. It allows an easy and intuitive adjustment for individual requirements.
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
