In Stock Hot Product
E3F1-DN11 2M
E3F1-DN11 2M E3F12002E 378936 OMRON Plastic Reflex 100mm NPN Cable 2m Lite
$39.30USD
297 in stock
Key Specifications
:
-:¢
Item:M12 Connector
Model:NPNoutput
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| - | ¢ |
| Item | M12 Connector |
| Model | NPNoutput |
| 300 mm | - |
| Storage | -30 to 70°C (with no icing or condensation) |
| Material | Case |
| Sensor type | Sensing distance |
| Through-beam | 15 m |
| Response time | 0.5 ms |
| Operation mode | Light-ON/Dark-ON selectable by wiring |
| Lens and Display | PMMA |
| Sensing distance | 15 m |
| Retro-reflective2 | 0.1 to 3 m (with E39-R1S) |
| Diffuse-reflective | 100 mm |
| Ambient temperature | Operating |
| Protection circuits | Reversed power supply polarity protection, Output short-circuit protection and Reversed output polarity protection |
| Degree of protection | IEC: IP66 |
| Power supply voltage | 10 to 30 VDC (include voltage ripple of 10%(p-p) max.) |
| Sensitivity adjustment | One-turn adjuster |
| Light source (wavelength) | Red LED (624 nm) |
Product Description

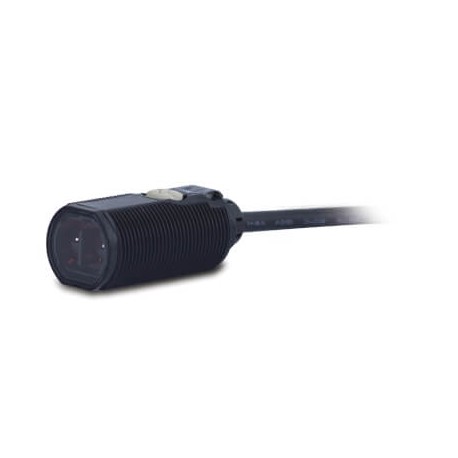

Photoelectric sensor, M18 threaded barrel, plastic, red LED, diffuse, 100 mm, NPN, Light-ON/Dark-ON, 2 m cable
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Omron E3F1 series represents an M18 size Photoelectric sensor with best value at competitive price. It features the same compact housing as E3FA and meets all requirements for standard industrial applications.
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
