E2S-Q25 2M

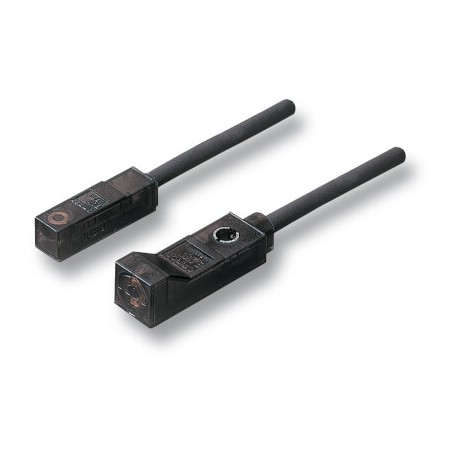

E2S-Q25 2M E2S 7086F 231592 OMRON Miniature Square Front 3h NoEnr 2.5mm PNP NA Cable 2m
$0.00USD
4466 in stock
Key Specifications
:
-:¢
Item:E2S-W1E2S-Q1
Storage:-40 to 85°C (with no icing or condensation)
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| - | ¢ |
| Item | E2S-W1E2S-Q1 |
| Storage | -40 to 85°C (with no icing or condensation) |
| Material | Case |
| 19 × 6 × 6 | - |
| 23 × 8 × 8 | 2.5 mm |
| 27 × 8 × 8 | 2.5 mm |
| Sensing distance | 1.6 mm±10% |
| Response frequency | 1 kHz min. |
| Ambient temperature | Operating |
| Protective circuits | Surge suppressor; power supply reverse polarity protection |
| Degree of protection | IEC60529 IP67 |
| Size in mm(H × W × D) | |
| Power supply voltage (operating voltage) | 12 to 24 VDC (10 to 30 VDC), ripple (p-p): 10% max. |
Product Description
Miniature rectangular Inductive, end face sensing, unshielded, 2.5 mm, PNP, NO, 2 m cable
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
The E2S family features miniature block style plastic housings for simple mounting on flat surfaces. The durable plastic housing with front or side facing sensing surfaces, provide best value-performance ratio for machine part movement detection.
