In Stock Hot Product

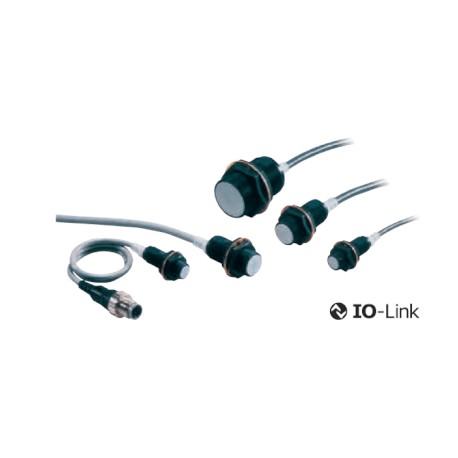

E2EQ-X7B4-IL3 2M
E2EQ-X7B4-IL3 2M E2EQ7037E 671256 OMRON Inductive Welding 3h cc Enr 7mm M18 NA/NC Cable 2m IO LINK COM3
$0.00USD
3508 in stock
Key Specifications
:M12
M18:7 mm
M30:10 mm
COM3:E2EQ-X3B4-IL3 2M
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| M12 | |
| M18 | 7 mm |
| M30 | 10 mm |
| COM3 | E2EQ-X3B4-IL3 2M |
| Item | Model |
| Size | M12 |
| Baud rate | -IL3: COM3 (230.4 kbps), -IL2: COM2 (38.4 kbps) |
| Materials | Case |
| Appearance | Sensing distance |
| Data length | PD size: 2 bytes, OD size: 1 byte (M-sequence type: TYPE_2_2) |
| Indicators1 | In the Standard I/O mode (SIO mode): Operation indicator (orange, lit) and stability indicator (green, lit)In the IO-Link mode: Operation indicator (orange, lit) and communication indicator (green, blinking at 1 s intervals) |
| Clamping nuts | Fluororesin coating (Base material: brass) |
| Set distance1 | 0 to 2.4 mm |
| Control output | Load current |
| Operation mode | PNP NO/NC switching type (Factory setting: NO) |
| Toothed washer | Zinc-plated iron |
| Sensing surface | Fluororesin |
| Residual voltage | 2 V max. (Load current: 100 mA, Cable length: 2 m) |
| Sensing distance | 3 mm ±10% |
| Connection method | Pre-wired Models (Standard cable length: 2 m), Pre-wired Connector Models (Standard cable length: 0.3 m) |
| Minimum cycle time | -IL3 (COM3): 1 ms, -IL2 (COM2): 2.3 ms |
| Current consumption | 20 mA max. |
| Differential travel | 10% max. of sensing distance |
| Response frequency2 | 1 kHz |
| Degree of protection | IEC 60529 IP67, in-house standards: oil-resistant |
| Power supply voltage | 10 to 30 VDC (including 10% ripple (p-p)) |
| Main IO-Link functions | Operation mode switching between NO and NC, self diagnosis enabling, excessive proximity judgment distance selecting, timer function of the control output and timer time selecting, instability output (IO-Link mode) ON delay timer time selecting function, monitor output, operating hours read-out, and initial reset |
| Communication specifications | IO-Link specification |
| M12 Pre-wired Smartclick connector models (0.3 m) | 1: +V3: 0 V4: C/Q output |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
IO-Link spatter-resistant proximity sensors as the innovative solution to solve issues at welding application areas of industrial manufacturing sites
