In Stock Hot Product

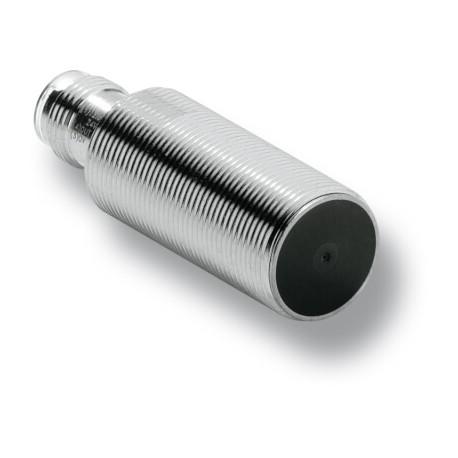

E2A-S08LS02-WP-C2 2M
E2A-S08LS02-WP-C2 2M E2A 7270R 406779 OMRON Stainless Steel Long 3h Enr 2mm M8 NPN NC Cable 2m
$67.14USD
187 in stock
Key Specifications
-:¢
M8:¢
M12:¢
M18:¢
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| - | ¢ |
| M8 | ¢ |
| M12 | ¢ |
| M18 | ¢ |
| M30 | ¢ |
| Item | M8 |
| Size | |
| Storage | -40 to 85°C (with no icing or condensation) |
| Material | Case |
| E2A-S08KS | E2A-S12KS |
| Sensing surface | PBT |
| Sensing distance | 2 mm±10% |
| Operation mode NO | Operation mode NC |
| Response frequency | 1,500 Hz |
| Ambient temperature | Operating |
| Protective circuits | Power supply reverse polarity protection, surge suppressor, short-circuit protection |
| Degree of protection | IP67 after IEC 60529; IP69K after DIN 40050 part 9 |
| Power supply voltage(operating voltage) | 12 to 24 VDC. Ripple (p-p): 10% max. (10 to 32 VDC) |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
The performance and operational reliability of the E2A family is also available in stainless steel housing.
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
