In Stock Hot Product

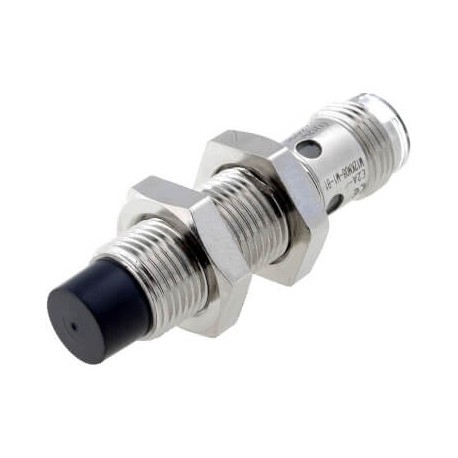

E2A-M12KN08-M1-B3
E2A-M12KN08-M1-B3 659333 OMRON Short 4h NoEnr 8mm M12 PNP NO+NC Connector M12
$0.00USD
4313 in stock
Key Specifications
():XS5W-D421-G81-XR
Size:M12
Output type:PNP
Mounting type:Non-flush
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| () | XS5W-D421-G81-XR |
| Size | M12 |
| Output type | PNP |
| Mounting type | Non-flush |
| Thread length | 27 mm |
| Operation mode | NO + NC |
| Overall length | 48 mm |
| Material housing | Brass, nickel plated |
| Sensing distance | 8 mm |
| Connection method | Connector M12 |
| Cable specifications | - |
Product Description
Proximity sensor, inductive, nickel-brass, short body, M12, unshielded, 8mm, DC, 4-wire, PNP-Antivalent (NO or NC), M12 plug-in
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
