In Stock Hot Product
E PX A 75X160X56
E PX A 75X160X56 0899304 PHOENIX CONTACT Junction box
$0.00USD
3140 in stock
Key Specifications
GTIN:4055626275734
Note:Made to Order (non-returnable)
Orderkey:0899304
Catalog page:Page 536 (C-3-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626275734 |
| Note | Made to Order (non-returnable) |
| Orderkey | 0899304 |
| Catalog page | Page 536 (C-3-2017) |
| Packing unit | 1 pc |
| (Dimensions) | Integrated blind hole |
| Depth (General) | 56 mm |
| Width (General) | 75 mm |
| Height (General) | 160 mm |
| Country of origin | IN (India) |
| Custom tariff number | 85389099 |
| Components (Dimensions) | halogen-free |
| Fixing device (Dimensions) | External fixing clips available as an option |
| Protection class (General) | II |
| Seal material (Dimensions) | Silicon |
| Type (Key Commercial Data) | Ex empty enclosure with cover |
| Color (Key Commercial Data) | black |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Cover fastening (Dimensions) | Screw-on cover |
| Housing material (Dimensions) | Glass-fiber-reinforced polyester with added graphite |
| Assembly length, max. (General) | 129 mm |
| Degree of protection (IK) (General) | 7.00 J EN 60079-0 |
| Weight per Piece (excluding packing) | 99.990 g |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Standards/regulations (Ambient conditions) | EN 60079-0 |
| Useable DIN rail type (Key Commercial Data) | NS 15 |
| Temperature in operating conditions (General) | -55 °C ... 127 °C |
| Degree of protection of housing (IP) (General) | IP66 |
| Direct DIN rail mounting (Key Commercial Data) | yes |
| Clearance width, maximum DIN rail length (General) | 148 mm |
| Flammability rating according to UL 94 (Ambient conditions) | V0 |
| Flammability rating according to UL 94 (Key Commercial Data) | V0 |
Product Description

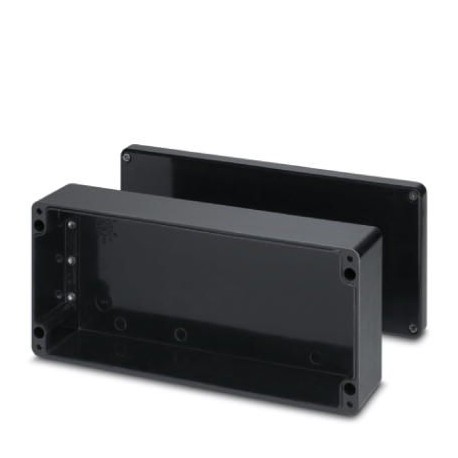

Empty housing, material: Fiberglass-reinforced polyester, with graphite supplement, black, 75 mm x 160 mm x 56 mm, closure type: Screw-on lid
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
