E PE A 75X190X56

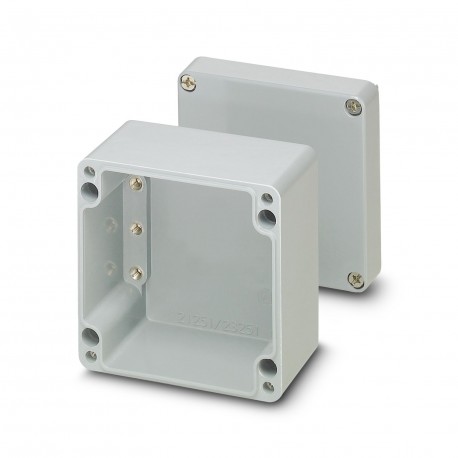

E PE A 75X190X56 0899343 PHOENIX CONTACT Junction box
$0.00USD
3983 in stock
Key Specifications
:External fixing clips available as an option
Type:Empty enclosure with cover
Color:squirrell grey RAL 7000
Depth:56 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| External fixing clips available as an option | |
| Type | Empty enclosure with cover |
| Color | squirrell grey RAL 7000 |
| Depth | 56 mm |
| Width | 75 mm |
| Height | 190 mm |
| General | Prepared for direct installation of a DIN rail |
| Material | Polyester fiberglass reinforced |
| Components | halogen-free |
| Product type | Terminal box |
| Assembly note | Integrated blind hole |
| Seal material | Chloroprene |
| Article revision | 00 |
| Protection class | II |
| Dimensional drawing | |
| max. assembly length | 159 mm |
| Type of locking (GRP) | Screw-on cover Plus/minus screw |
| Useable DIN rail type | NS 15 |
| Direct DIN rail mounting | yes |
| Ambient temperature (operation) | -40 °C ... 100 °C |
| Flammability rating according to UL 94 | V0 |
| Clearance width, maximum DIN rail length | 174 mm |
Product Description
Empty housing, material: Fiberglass-reinforced polyester, squirrel gray RAL 7000, 75 mm x 190 mm x 56 mm, type of closure: Screw-on lid
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
