E/NS 35 N

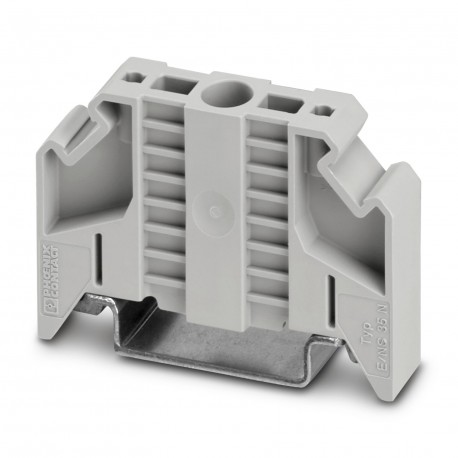

E/NS 35 N 0800886 PHOENIX CONTACT End clamp
$0.00USD
4713 in stock
Key Specifications
:NS 35/15
Color:gray (RAL 7042)
Depth:32.8 mm
Width:9.5 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| NS 35/15 | |
| Color | gray (RAL 7042) |
| Depth | 32.8 mm |
| Width | 9.5 mm |
| Height | 48.6 mm |
| Length | 48.6 mm |
| Material | PA |
| Product type | End bracket |
| Screw thread | M3 |
| Mounting type | NS 35/7,5 |
| Article revision | 09 |
| Tightening torque | 0.5 ... 0.8 Nm |
| Depth on NS 35/7,5 | 34.3 mm |
| Dimensional drawing | |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Ambient temperature (operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
| Flammability rating according to UL 94 | V0 |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Static insulating material application in cold | -60 °C |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C |
Product Description
Final bracket, width: 9.5 mm, color: Grey
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
