In Stock Hot Product
DX-LM3-370

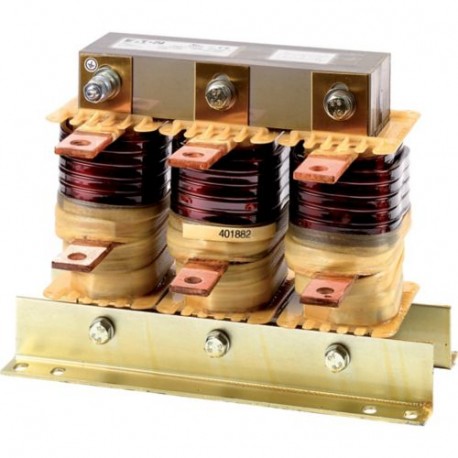

DX-LM3-370 169147 Y7-169147 EATON ELECTRIC Motor choke (3-phase, 750V, 370A)
$0.00USD
4744 in stock
Key Specifications
Feature Name:Feature Value
Rated current AC (EF007500):370 A
Rated inductance (EF007291):0.12 mH
Resonance frequency (EF007455):0 Hz
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Rated current AC (EF007500) | 370 A |
| Rated inductance (EF007291) | 0.12 mH |
| Resonance frequency (EF007455) | 0 Hz |
| Rated clock frequency (EF007502) | 3 kHz |
| Degree of protection (IP) (EF005474) | IP00 |
| Rated operating frequency (EF007024) | 0 Hz |
| Degree of protection (NEMA) (EF011959) | Other |
| Number of poles, primary side (EF007403) | 3 |
| Relative short circuit voltage (EF007452) | 20.2 % |
| Suitable as net reactance coil (EF007234) | No |
| Max. rated operation voltage Ue (EF007357) | 750 V |
| Suitable as ripple filter choke (EF007232) | No |
| Suitable as output reactance coil (EF007227) | Yes |
| Suitable as commutation reactance coil (EF007233) | No |
| Max. rated current (Ith) at rated voltage DC (EF007359) | 0 A |
| Suitable as interference suppression reactance coil (EF007230) | No |
Product Description
DX-LM3-370
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
