In Stock Hot Product
DTZ20(*/*)*

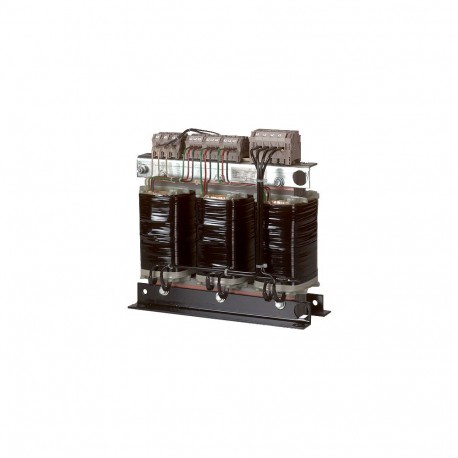

DTZ20(*/*)* 914815 Y7-914815 EATON ELECTRIC Three-phase control/isolation/safety transformer, 20kVA, non-sta..
$0.00USD
3259 in stock
Key Specifications
Feature Name:Feature Value
Depth (EF000049):251 mm
Width (EF000008):450 mm
Height (EF000040):434 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Depth (EF000049) | 251 mm |
| Width (EF000008) | 450 mm |
| Height (EF000040) | 434 mm |
| Rated power (EF007051) | 20000 VA |
| Wiring system (EF002960) | Other |
| Primary voltage 1 (EF006125) | 50 V |
| Primary voltage 2 (EF006126) | 50 V |
| Primary voltage 3 (EF006127) | 50 V |
| Primary voltage 4 (EF007410) | 50 V |
| Primary voltage 5 (EF007411) | 50 V |
| Primary voltage 6 (EF007412) | 50 V |
| Primary voltage 7 (EF007413) | 0 V |
| Primary voltage 8 (EF007414) | 0 V |
| Primary voltage 9 (EF007415) | 0 V |
| Conductor material (EF001622) | Copper |
| Primary voltage 10 (EF007409) | 0 V |
| Secondary voltage 1 (EF007472) | 18.5 V |
| Secondary voltage 2 (EF007474) | 18.5 V |
| Secondary voltage 3 (EF007475) | 18.5 V |
| Secondary voltage 4 (EF007476) | 18.5 V |
| Secondary voltage 5 (EF007477) | 18.5 V |
| Secondary voltage 6 (EF007478) | 18.5 V |
| Secondary voltage 7 (EF007479) | 0 V |
| Secondary voltage 8 (EF007480) | 0 V |
| Secondary voltage 9 (EF007481) | 0 V |
| Short-circuit-proof (EF007332) | No |
| Secondary voltage 10 (EF007473) | 0 V |
| Degree of protection (IP) (EF005474) | IP00 |
| Built as safety transformer (EF007235) | Yes |
| Degree of protection (NEMA) (EF011959) | Other |
| Built as isolating transformer (EF007238) | Yes |
| Relative short circuit voltage (EF007452) | 3.5 % |
| Built as energy saving transformer (EF007005) | No |
| Type of insulation material according to IEC 85 (EF007299) | B |
Product Description
DTZ20(*/*)*
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
