DRT2-ROS16

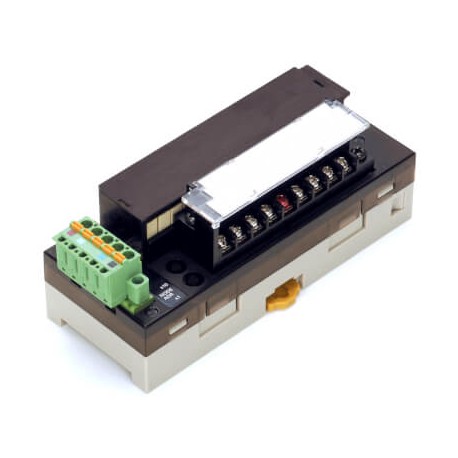

DRT2-ROS16 DRT27009E 229626 OMRON Module 16 Relay Outputs 2A
$0.00USD
4891 in stock
Key Specifications
():XWT-OD16-1
Depth:51.8 mm
Width:125 mm
Height:50 mm
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| () | XWT-OD16-1 |
| Depth | 51.8 mm |
| Width | 125 mm |
| Height | 50 mm |
| Weight | 260 g |
| I/O system | I/O Expansion Link |
| Output current | 3 A |
| Type of module | Digital I/O |
| Connection method | 1-wire |
| Digital input type | None |
| Digital output type | Relay NO |
| I/O connection type | Screw |
| Communication port(s) | DeviceNet Slave |
| Number of digital inputs | 0 |
| Degree of protection (IP) | IP20 |
| Number of digital outputs | 16 |
| Permitted voltage at output | 0-250 V |
| Short-circuit protected outputs |
Product Description
DeviceNet digital output unit, 16 x relay outputs, 3A, 240 VAC, 24 VDC, screw terminal block
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
