In Stock Hot Product
DRT-960-48

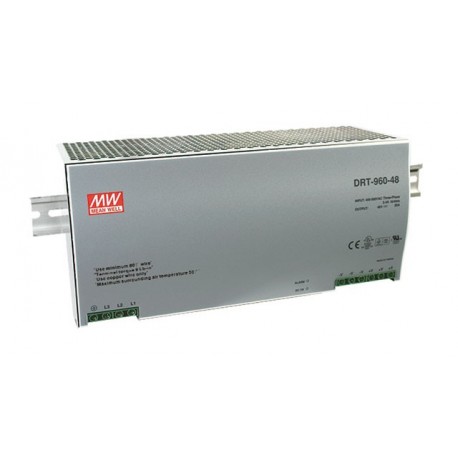

DRT-960-48 MEANWELL AC-DC Industrial DIN rail power supply, Output 48VDC / 20A, metal case, 3-phase input
$0.00USD
3691 in stock
Key Specifications
Name:DRT-960-48
Format:Din Rail
Series:DRT-960
Approvals:CE, UL
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | DRT-960-48 |
| Format | Din Rail |
| Series | DRT-960 |
| Approvals | CE, UL |
| Power (W) | 960,00 |
| Subformato | Narrow |
| Width (mm) | 276.00 |
| Height (mm) | 125.20 |
| AC input Max | 550,00 |
| AC input Min | 340,00 |
| Applications | Industrial, Telecommunications |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Isolation (V) | 3.000,00 |
| Output voltage | 48,00 |
| Peak Power (W) | Nine hundred sixty |
| Input connector | Screw-Type |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | 100.00 |
| Long Description | Power supply with three Phase input DIN Rail.Format to mount on a Din Rail.Input rangeThree-phase without Neutral3x340-550Vca47-63Hz.Output voltage48vdc.Adjustable by potentiometer (48-55Vcc).Output intensity:20A. Range of output current 0-20A according to demand load.Power:960W.Efficiency:92%.Working temperature: from-20up+60ºCof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Width x Height x depth):276 x 125,2 x 100mm.3 years of warranty.Manufacturer: MEANWELL.The series DRT are power supplies for Din rail mounting with metal housing and fanless design.Are three-phase with input range of 340-550Vca designed for large industrial equipment. |
| Output connector | Screw-Type |
| Type of Entry CA | Three-phase |
| Warranty (Years) | 3,00 |
| Country of Origin | Taiwan |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Power supply with three Phase input DIN Rail.
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
