DPA60C06/300

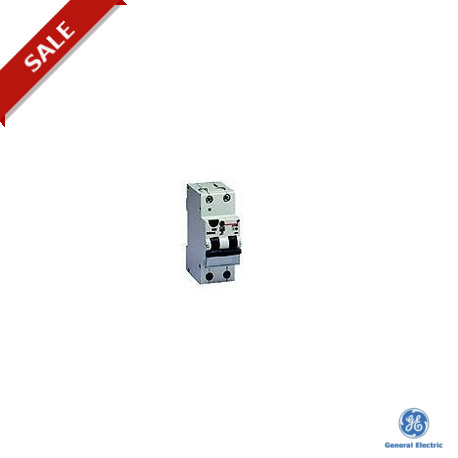

DPA60C06/300 608576 GENERAL ELECTRIC Residual current circuit breaker DP60 A 1P+N 6A 300mA
$0.00USD
3426 in stock
Key Specifications
Type:Type A
Poles:1P+N
Range:DP60
Serie:Series A
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Type A |
| Poles | 1P+N |
| Range | DP60 |
| Serie | Series A |
| Series | Residual current circuit breaker |
| Approvals | IMQ, KEMA, CEBEC, CE |
| Frequency | 50 - 60 Hz |
| Rated current In | 6 A |
| Residual current | 300 mA |
| Standard packing | 6 |
| Number of modules | 2 |
| Selectivity class | 3 |
| Nominal current Un | 230 Vac |
| Ambient temperature | -25°C / 40°C |
| ETIM 5.0 (DIMENSIONS) | EC000003 |
| ETIM 6.0 (DIMENSIONS) | EC000003 |
| Minimum servicevoltage | 100 V |
| Short circuit capacity | Inc = 6000A at 230V |
| Switching off capacity | C (5-10 x In) |
| Electrical service life | 20000/10000 |
| Weight (SPECIFICATIONS) | 0.25 kg |
| Nuisance tripping resistance | 250 A 8/20µs - 200 A 0.5 µs - 100 kHz |
| Differential capacity EP30/EP60/EP100 | 6000A |
| Terminal capacity flexible/rigid cable | 16/25 mm²- 25/35 mm² |
| Differential making and breaking capacity | I(Δ)m = 6000 A |
| Tropicalisation according to IEC 60068-2-28/2-30 | 95%RV at 55°C |
